PVC Pipe Extrusion Line (16-1000mm)

PVC Pipe Extrusion Line Description:

16-1000mm PVC pipe extrusion line is mainly used in manufacturing the pipe for agricultural and constructional plumbing, cable laying etc. The PVC pipe extrusion machine is composed by conical twin-screw extruder, mould, vacuum calibration tank, haul-off, cutter and staker etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand.

PVC Pipe Extrusion Line

The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc. you may choose saw cutting type or planetary cutting type. The PVC pipe extrusion machine is additionally attached with the length counter and intensifying device. The PVC pipe extrusion machine is with the reliable performance and high production efficiency.

PVC Pipe Extrusion Line

Beier Machinery can customize pipe extrusion line according to customer requirements, with excellent quality and favorable prices.

PVC Pipe Extrusion Machine Application：

1. Conveyance of water, under pressure
2. Sewerage piping systems
3. Drainage piping systems
4. Electrical, telecommunications engineering pipeline

PVC Pipe Extrusion Machine Technical Parameter:

Pipe range(mm)	Extruder model	Extruder motor power(KW)	Capacity(kg/h)
Φ16-63 Dual pipe	SJZ65/132	37	280-350
Φ50-110 Dual pipe	SJZ80/156	55	400-550
Φ50-160	SJZ65/132	37	280-350
Φ75-250	SJZ65/132	37	280-350
Φ110-315	SJZ80/156	55	400-550
Φ160-450	SJZ80/156	55	400-550
Φ160-450	BRP93/28	67	550-600
Φ315-630	SJZ92/188	110	750-850
Φ315-630	BRP107/26	90	750-850
Φ710-1000	BRP135/28	160	1100-1200

PVC Pipe Extrusion Production Line Video:

PVC Four Strand Extrusion Line

50-160mm PVC Pipe Extrusion Line

PVC Double Exit Pipe Extrusion Line

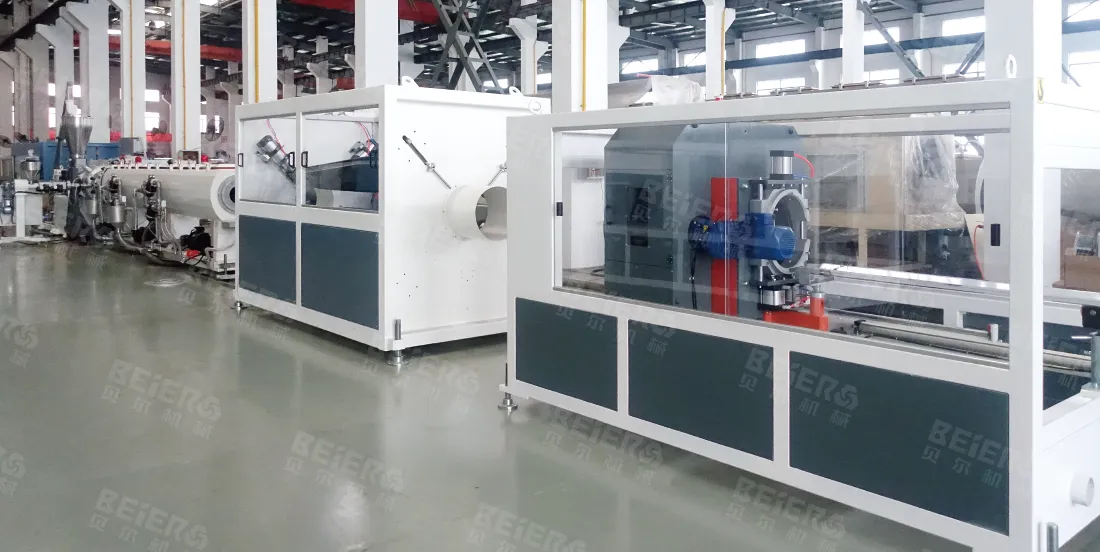

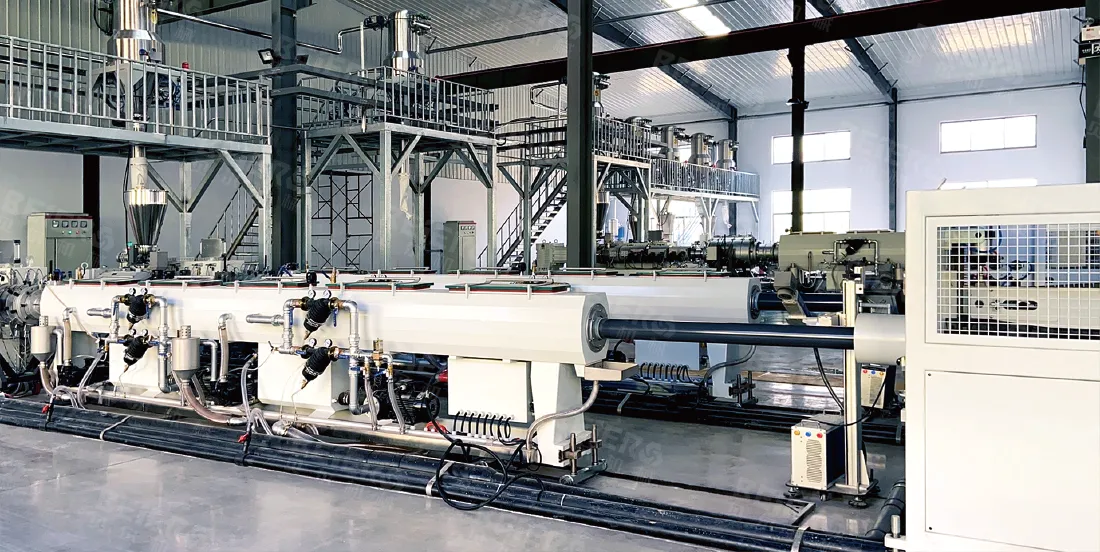

Complete PVC Pipe Production Line:

PVC Pipe Extrusion Line

PVC Pipe Extrusion Machine Details：

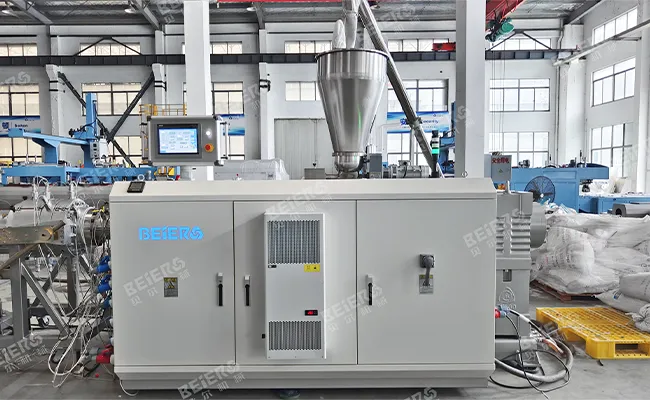

Extruder Part
Verticle High torque gearbox Gearbox:Sunglung brand,Taiwan Every 48hours clean and fast cooling system, 16mm speed:13m/min*4pcs=52m/min(conduit pipe) 32mm speed:6m/min*4pcs=24m/min(pressure pipe)
Mould Part

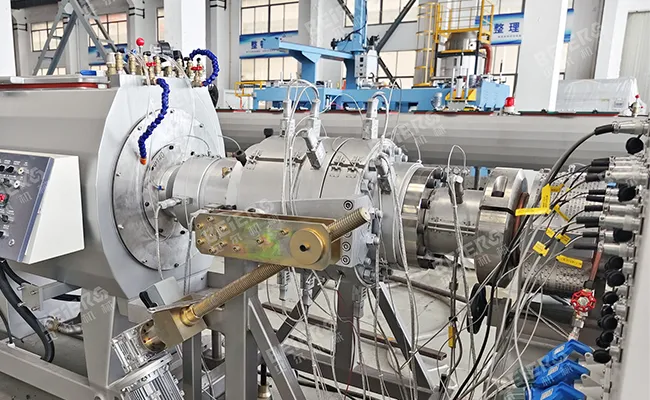

Extrusion head inside spider structure, equal distribution & best plasticization. Copper Calibrator with double water ring,stable and fast running on line.

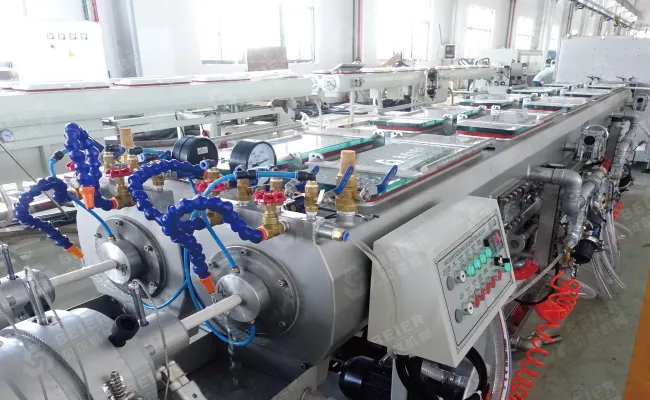

Vacuum Tank Part
1. Optimized design tank and water pipe system made from stainless steel. 2. Water pipe and vacuum system stability and adjustable. 3. Vacuum table adjustable in 3-D direction.

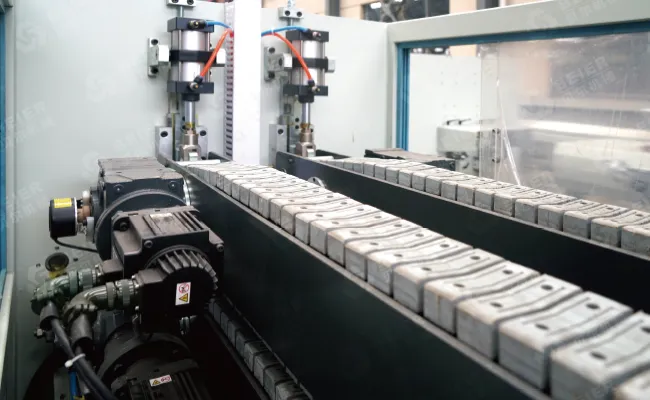

Hual-off Part
Speed range: 0-20m/min. Sychronous of PLC, Vacuum tank and Haul off. ABB invertor controlled.

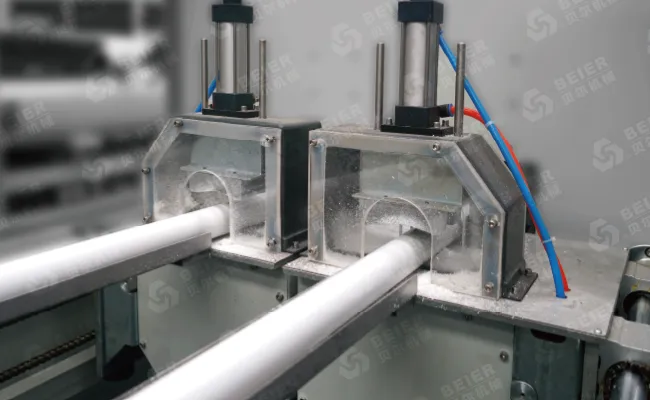

Cutter
Meter encoder with prescisely and stability. Ring knife design independently controlled. Chiless cutter without PVC dust... Each blade diameter easier changed to sharpner.
