Φ20-800 Series PVC Pipe Extrusion Line

Φ20-800 Series PVC Pipe Extrusion Line Application:

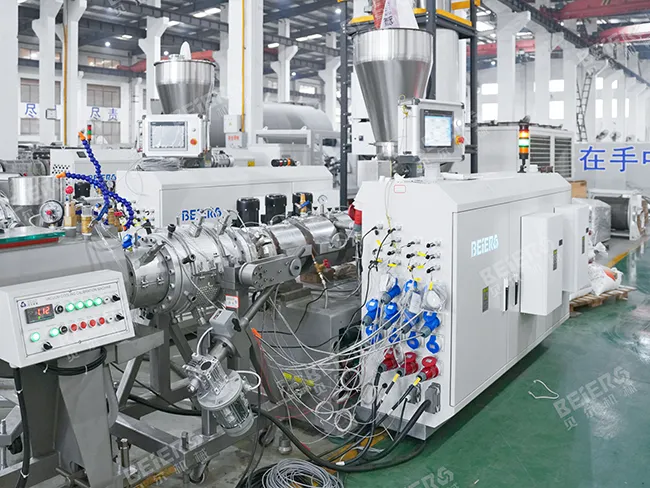

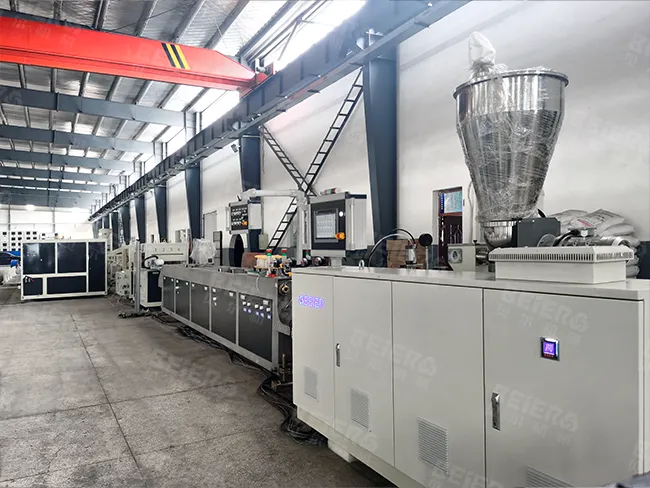

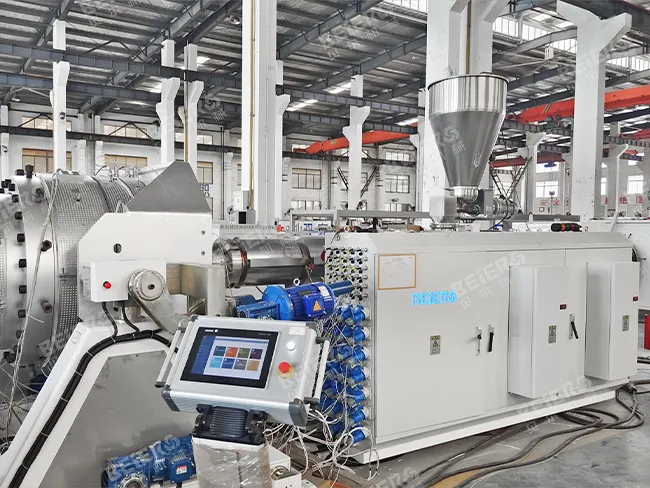

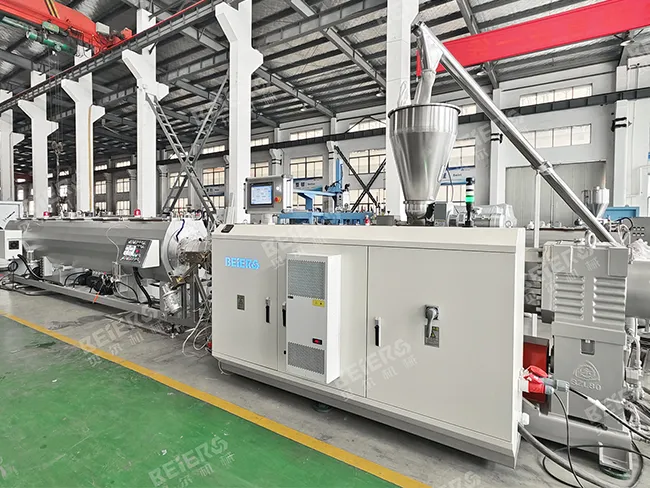

Φ20-800 series PVC pipe extrusion line is mainly used in manufacturing the pipe for agricultural and constructional plumbing,cable laying etc,This line is composed by conical twin-screw extruder,mould,vacuum calibration tank,haul-off ,cutter and staker etc.The extruder and haul-off adopt imported AC frequency control device,vacuum pump and haul-off motors adopt high-quailty brand.The haul-off methods are two-claw,three-claw,four-claw,six-claw,eight-claw etc,you may choose saw cutting type or planetary cutting type,It is additionally attached with the length counter and intensifying device,plastic pipe extrusion is with the reliable performance and high production efficiency.Our company can also manufacture special pipe production lines,eg.Spiral silencing pipe and core foaming pipe according to your requirements.



Φ20-800-series-pvc-pipe-extrusion-line
Φ20-800 Series Pipe Extrusion Line Advantages:

1.Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
2.Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
3.Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;

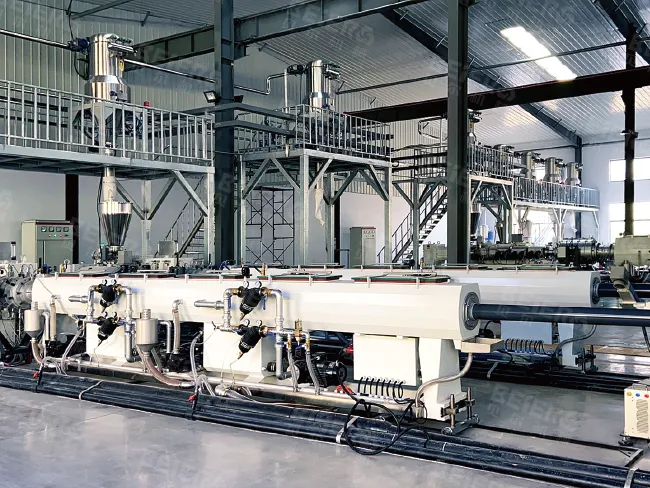

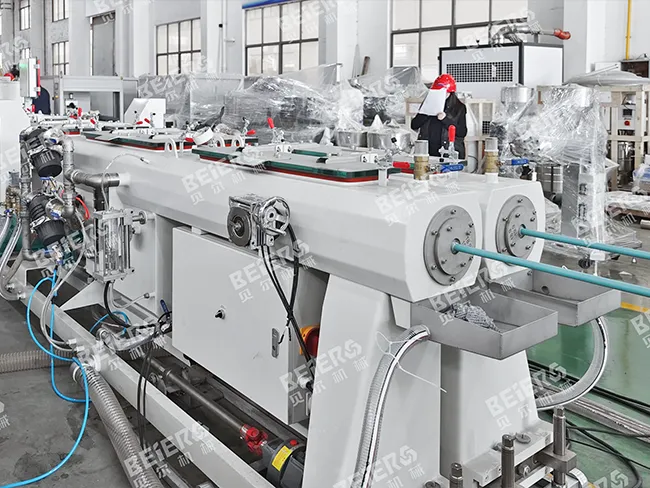

4.Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;

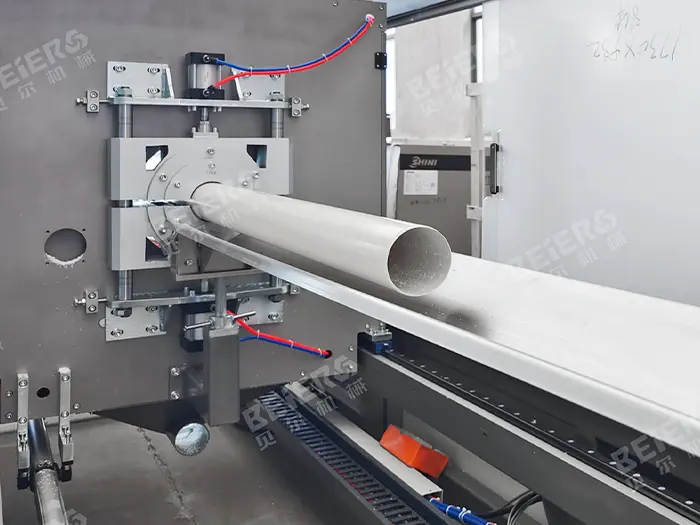

5.Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
6.U type, R type and Air blow type socket can be provided according to applications;
7.Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
