Case Study: 50-160mm PVC Pipe Extrusion Line for Asian Customer

BEIER Machinery recently hosted a prominent Asian industrial piping manufacturer at our state-of-the-art facility. The visit was dedicated to the Factory Acceptance Test (FAT) of their newly ordered 50-160mm PVC pipe extrusion line.

The trial was a resounding success, demonstrating exceptional stability, high output, and precision engineering that exceeded the client’s strict technical requirements.

Meeting the Demands of a Growing Infrastructure Market

The 50-160mm diameter range is a highly demanded segment in Asian construction and municipal sectors. These pipes are widely used for water supply, drainage, and electrical cable conduits. To stay competitive, our client required a PVC pipe production line that delivered three core advantages:

• Uncompromising wall thickness consistency
• High energy efficiency
• Rapid product changeover capabilities

Highlights of the Live Demonstration:

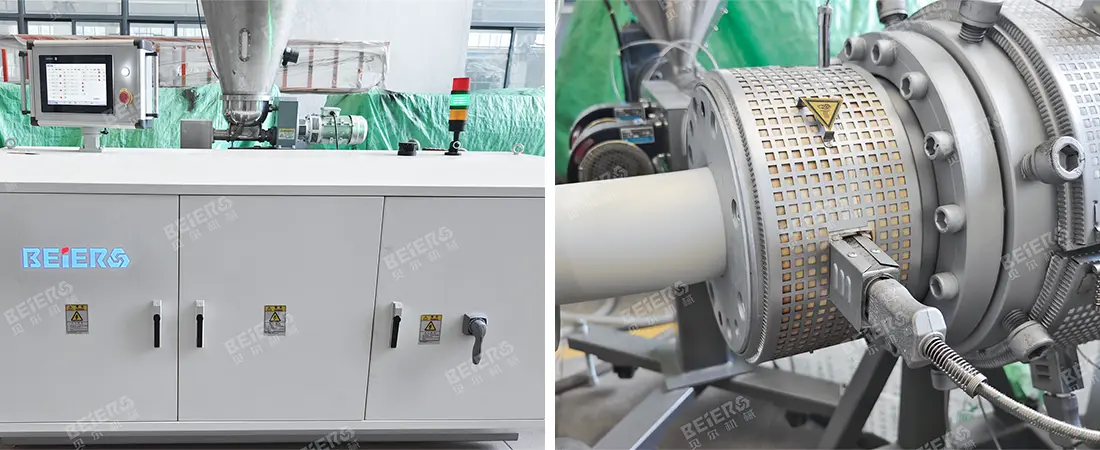

• Flawless Melt Homogeneity: Powered by our advanced conical twin-screw extruder, the PVC compound achieved perfect plasticization at optimized temperatures. This eliminated any risk of material degradation.

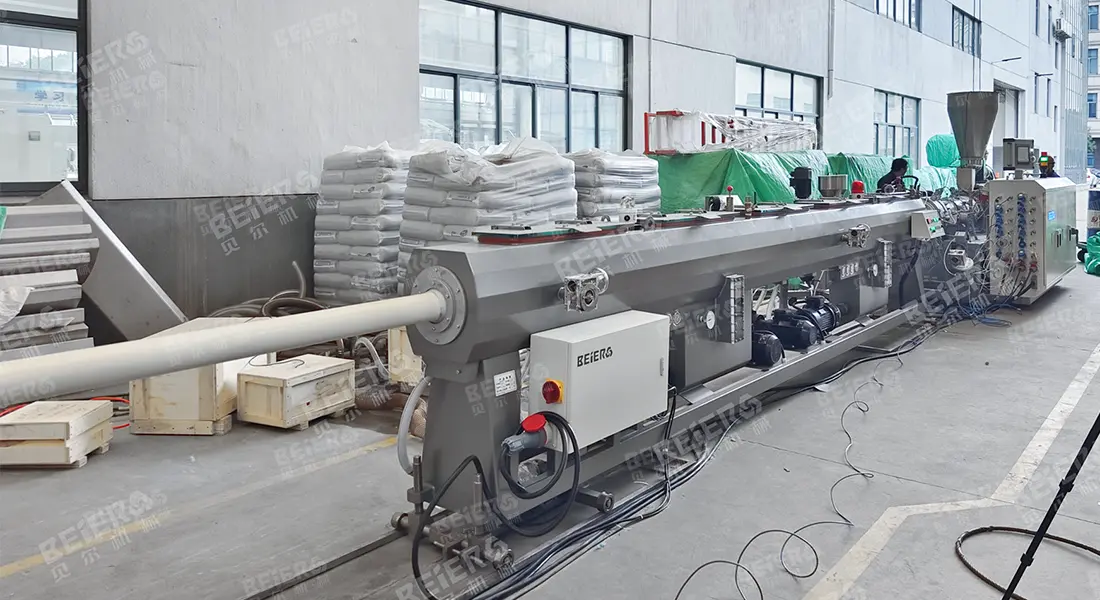

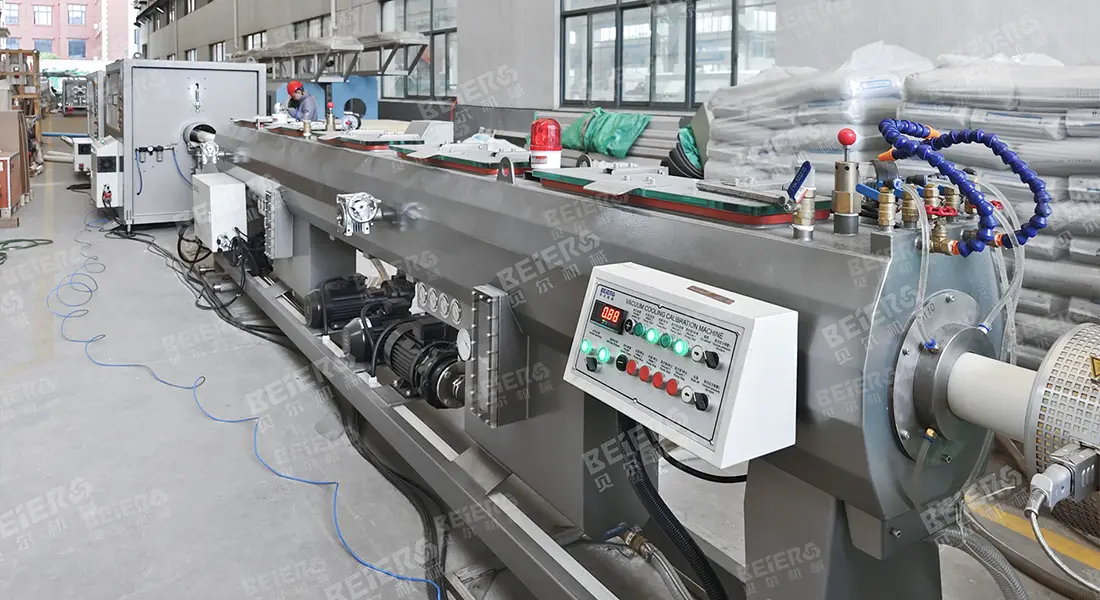

• Precision Sizing and Cooling: The vacuum calibration and spray cooling tanks maintained precise outer diameter (OD) control. Even at high line speeds, the produced 110mm and 160mm PVC pipes exhibited perfectly smooth internal and external surfaces.

• Automated Wall Thickness Control: The integrated ultrasonic thickness gauge provided real-time feedback, ensuring that wall thickness variations remained well within international standard tolerances.
• Synchronized Haul-Off & Dust-Free Cutting: The multi-claw haul-off unit pulled the pipe with rock-solid stability. Simultaneously, the swarfless cutting machine produced clean, chamfered cuts, ready for immediate socketing.

Partnering for Long-Term Success:

Upon witnessing the continuous, stable operation and inspecting the flawless physical properties of the extruded pipes, the client’s engineering team expressed immense satisfaction.

“The efficiency of BEIER’s pipe line and the professionalism of their technical team gave us complete confidence,” stated the client’s project director. “This PVC pipe production line will significantly boost our capacity to supply high-quality PVC pipes to our local infrastructure market.”

The machinery has now been safely packed according to international maritime transport standards and is en route to the client’s factory, backed by BEIER’s comprehensive overseas installation and commissioning support.

FAQ:

Q1: What is the maximum output of the BEIER’s 50-160mm PVC pipe extrusion line?

A: This production line delivers a stable output of 280 kg/h to 350 kg/h. Actual throughput varies based on the chosen extruder model and the specific PVC formulation.

Q2: Can this production line handle both pressure and non-pressure PVC pipes?

A: Yes. By simply adjusting the die head tooling, vacuum pressure, and formulation, this line can seamlessly switch between manufacturing high-pressure water supply pipes and gravity drainage/conduit pipes.

Q3: How does BEIER ensure post-delivery success for international clients?

A: We provide full turnkey services. Once the machine arrives at your factory, our experienced field engineers will handle the mechanical installation, electrical wiring, and fine-tuning, alongside providing comprehensive operation training for your local staff.
