HDPE Pipe Extruder Machine 16-2500mm

16-2500mm HDPE Pipe Extruder Machine

According to many years of plastic machinery development and design experience, in the introduction of foreign advanced technology and digestion and absorption, on the basis of self-developed HDPE pipe extruder machine. Has the unique structure, the design is novel, the equipment entire line layout is reasonable, the control performance is strong and so on.

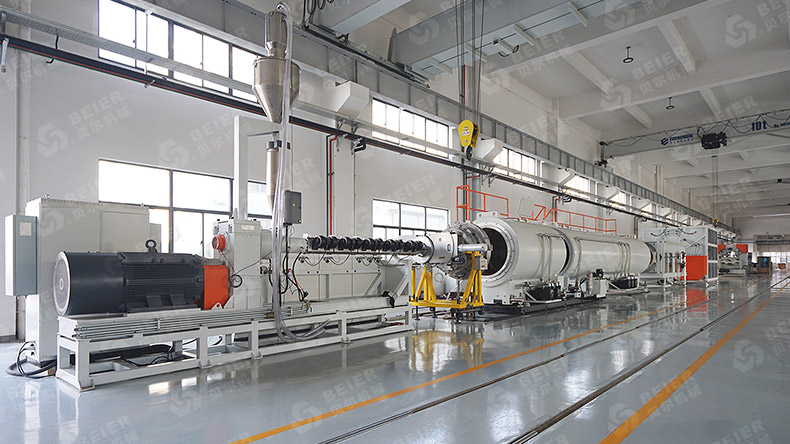

HDPE Pipe Extruder Machine

HDPE pipe extruder line using PLC control system, man-machine dialogue interface, simple operation, stand-alone adjustment, the full board linkage, automatic fault alarm, production and reliable.

16-2500mm HDPE Pipe Extruder Line Features:

1. The optimum spiral bush highly improves the output of HDPE pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and high quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

HDPE Pipe Extruder Machine Technical Parameter:

Model Pipe range(mm) Extruder model Extruder motor power(kw) Max. Output(kg/h)
BRD-63 Φ20-63 BRD60/38 90 450
BRD-110 Φ20-110 BRD60/38 110 500
BRD-160 Φ40-160 BRD60/38 110 500
BRD-250 Φ50-250 BRD75/38 160 680
BRD-450 Φ160-450 BRD90/38 250 1000
BRD-630 Φ280-630 BRD90/38 280 1100
BRD-800 Φ315-800 BRD120/38 315 1300
BRD-1200 Φ500-1200 BRD120/38 355 1400
BRD-1600 Φ1000-1600 BRD90/38&BRD90/38 250+250 2000
BRD-2000 Φ1000-2000 BRD90/38&BRD90/38 280+280 2200

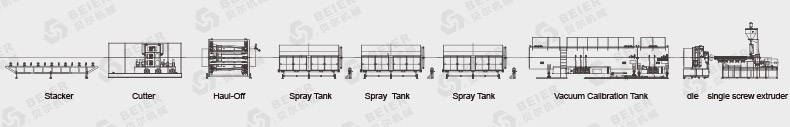

Complete HDPE Pipe Production Line:

HDPE Pipe Extruder Machine

16-2500mm HDPE Pipe Extruder Line Video:

16-2500mm HDPE Pipe Extruder Line Details:

Spread the love

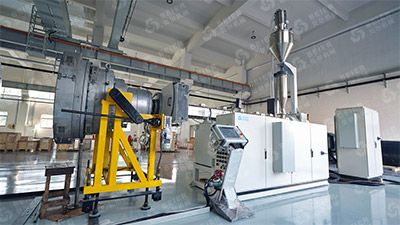

  • Extruder
    Beier Optimized screw design, high output, low energy consuming. Good material plasticization at high screw RPM. Precise temperature, speed monitoring and controlling with latest Siemens PLC system Remote control guarantee on-time aftersales service

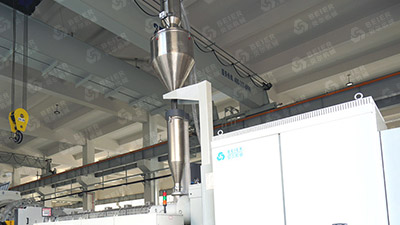

  • Inoex Gravimetric system
    he integrated gravimetric system detect the weight of product in real time, which saves production cost and guarantees pipe quality.

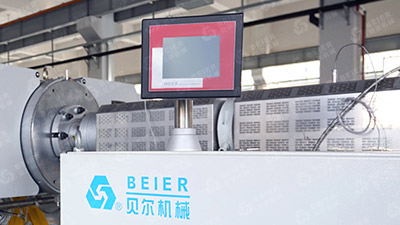

  • Precise Control
    All electrical components adopt internationally top brands, and the intelligent remote service module makes online-after-services achievable.

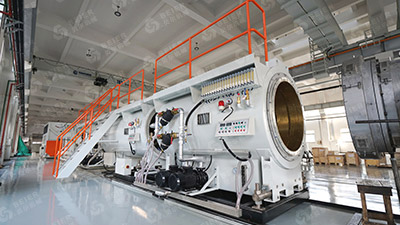

  • Vacuum Tank
    Advanced cyclone design and adjustable spray angle for better cooling effect. Driven by hydraulic system, move forward and backward rapidly and stably. 3+9m design for fast cooling calibration and segment control.

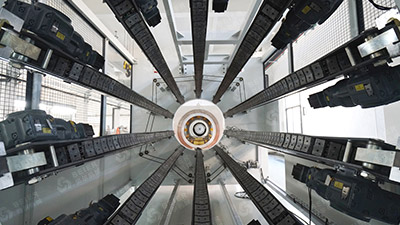

  • Haul-off
    Each caterpillar controlled by independent motor, optional servo motor guarantee uniform speed. Special design for well adapted to insulation pipe.

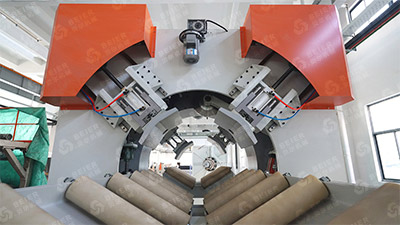

  • Cutter
    Precise non-chip and planetary cutting with servo motor, adapt to different cutting situation.
