O-PVC Pipe Extrusion Line

O-PVC Pipe Extrusion Line Description:

O-PVC pipe extrusion machine is BEIER’s new generation of energy-saving and environmental protection extrusion line. In terms of energy saving, the pressure loss is minimized and the power consumption is low. In the environmental protection, 100% recyclable materials makes the most economical production, the pipeline is strong anti-degradation and avoid leakage. Compared with the traditional PVC product, both production capacity efficiency and green environmental protection have been significantly improved. At present, there are 25 production lines serving the domestic and foreign manufacturers worldwide. With the further improvement of technology, we will constantly challenge smaller and larger diameter to meet the needs of different customers and create greater value.

O-PVC Pipe Extrusion Line

O-PVC pipe extrusion line is mainly used in manufacturing the pipe for agricultural and constructional plumbing, cable laying etc. O-PVC pipe extrusion machine is composed by conical twin-screw extruder, mould, vacuum calibration tank, haul-off, cutter and staker etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand.

The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc. You may choose saw cutting type or planetary cutting type. The O-PVC pipe extrusion machine is additionally attached with the length counter and intensifying device. The pipe extrusion line is with the reliable performance and high production efficiency.

O-PVC Pipe Extrusion Machine Advantage

1. Cost Efficiency
Half thickness of PVC-U pipe. Raw material cost effective.
4 Times impact resistance to external loads

2. Energy Efficient
Smooth inner wall. Higher water conveyance.
Increased hydraulic capacity
Between 15-40% more hydraulic capacity than PVC-U, HDPE

3. Optimal Environmental Performance
Optimal environmental performance
Energy efficient

O-PVC Pipe Extrusion Line Application:

1. Supplying & Infraestructure nets
2. Drain pipe
3. Instruction
4. Irrigation

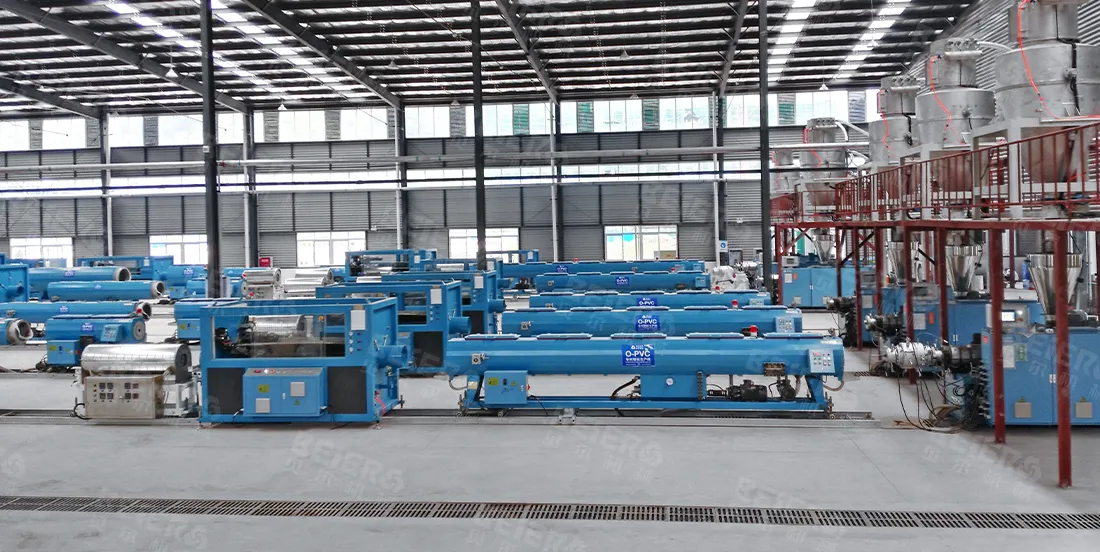

Complete O-PVC Pipe Production Line:

O-PVC Pipe Extrusion Line

O-PVC Pipe Extrusion Machine Details:

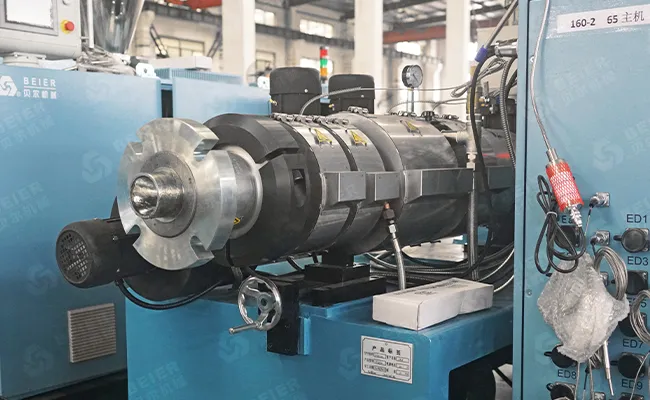

  • Extruder Part
    Verticle High torque gearbox Gearbox:Sunglung brand,Taiwan

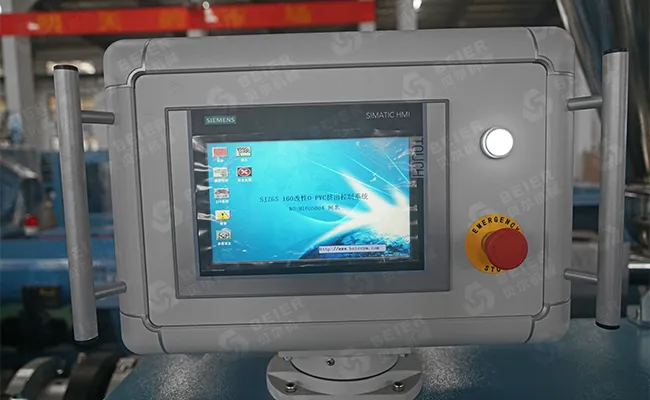

  • Precise Control
    All electrical components adopt internationally top brands, and the intelligent remote service module makes online-after-services achievable.

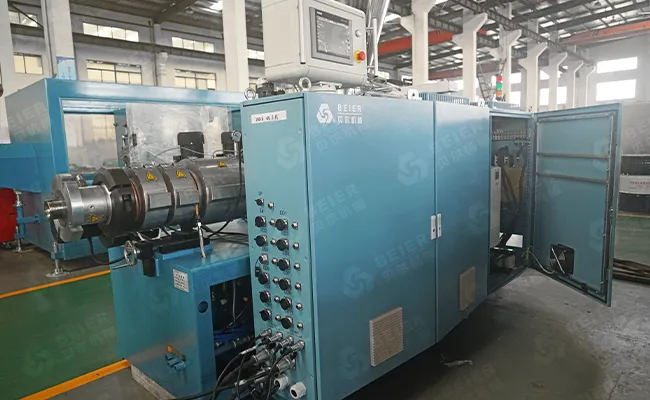

  • Mould Part
    Extrusion head inside spider structure, equal distribution & best plasticization.

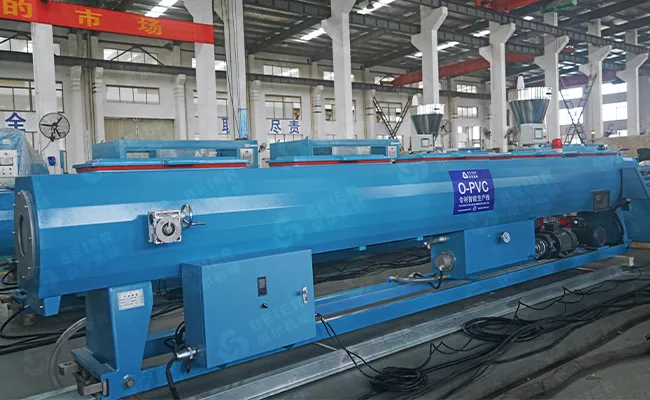

  • Vacuum Tank Part
    1. Optimized design tank and water pipe system made from stainless steel 2. Water pipe and vacuum system stability and adjustable 3. Vacuum table adjustable in 3-D direction

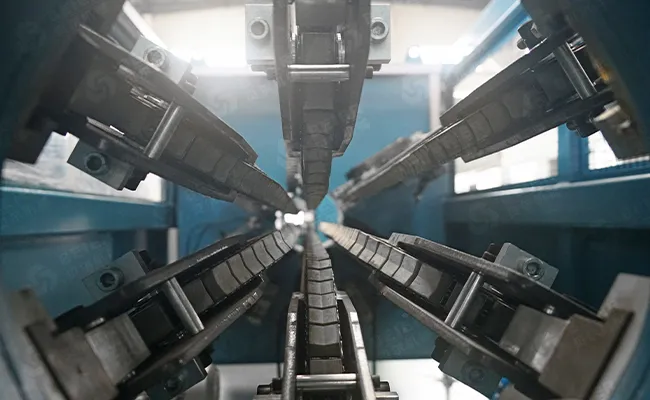

  • Hual-off Part
    Upon caterpillar with limit device in avoid of the deformation of pipes. V type high friction rubber pads.

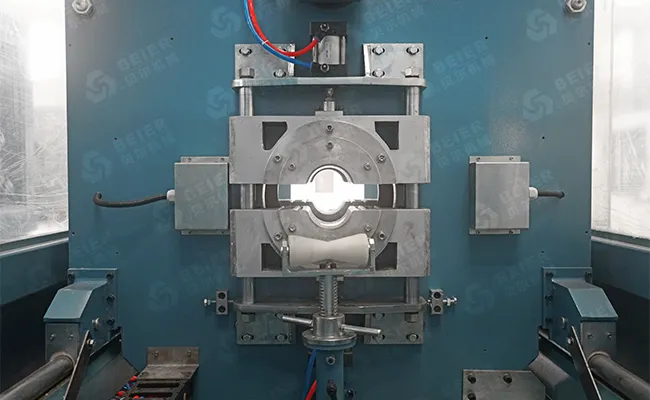

  • Cutter
    Universal clamping. Servo motor driving directly, cutting more precisely and stability. Imported blade material ensure PVC pipe surface smooth cutting.
