PE Pipe Production Line 500-1200mm

PE Pipe Production Line Introduction:

According to many years of plastic machinery development and design experience, in the introduction of foreign advanced technology and digestion and absorption, on the basis of self-developed PE pipe production line. Has the unique structure, the design is novel, the equipment entire line layout is reasonable, the control performance is strong and so on.

PE Pipe Production Line

PE pipe extrusion line using PLC control system, man-machine dialogue interface, simple operation, stand-alone adjustment, the full board linkage, automatic fault alarm, production and reliable.

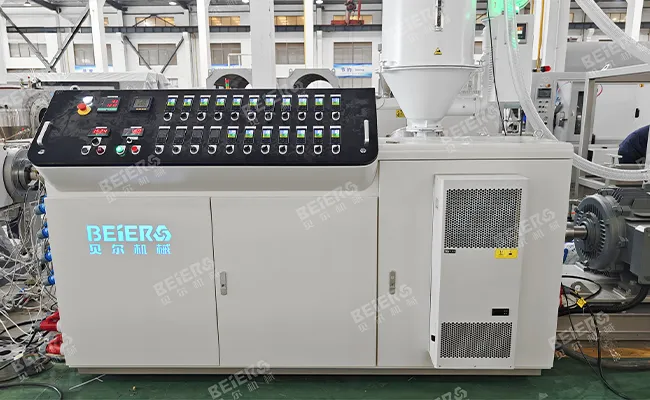

PE Pipe Extrusion Machine Features:

1. The optimum spiral bush highly improves the output of pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and high quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

PE Pipe Production Line Main Technical Parameter:

Model Pipe range(mm) Extruder model Extruder motor power(kw) Max. Output(kg/h)
BRD-63 Φ20-63 BRD60/38 90 450
BRD-110 Φ20-110 BRD60/38 110 500
BRD-160 Φ40-160 BRD60/38 110 500
BRD-250 Φ50-250 BRD75/38 160 680
BRD-450 Φ160-450 BRD90/38 250 1000
BRD-630 Φ280-630 BRD90/38 280 1100
BRD-800 Φ315-800 BRD120/38 315 1300
BRD-1200 Φ500-1200 BRD120/38 355 1400
BRD-1600 Φ1000-1600 BRD90/38&BRD90/38 250+250 2000
BRD-2000 Φ1000-2000 BRD90/38&BRD90/38 280+280 2200

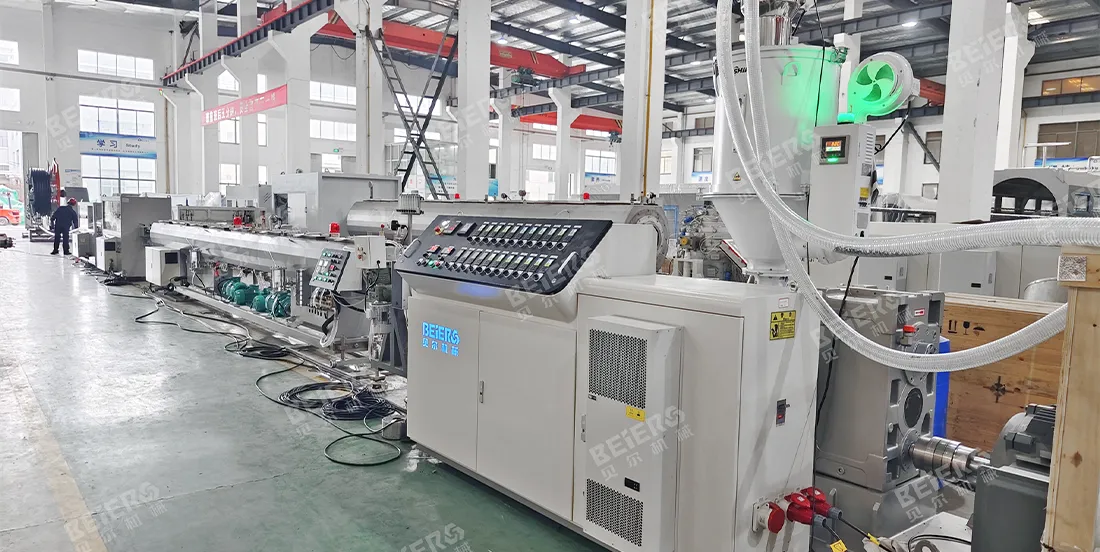

Complete PE Pipe Extrusion Line:

PE Pipe Extrusion Line Video:

PE Pipe Extrusion Line Detail:

Spread the love
  • Precise Control
    All electrical components adopt internationally top brands, and the intelligent remote service module makes online-after-services achievable.

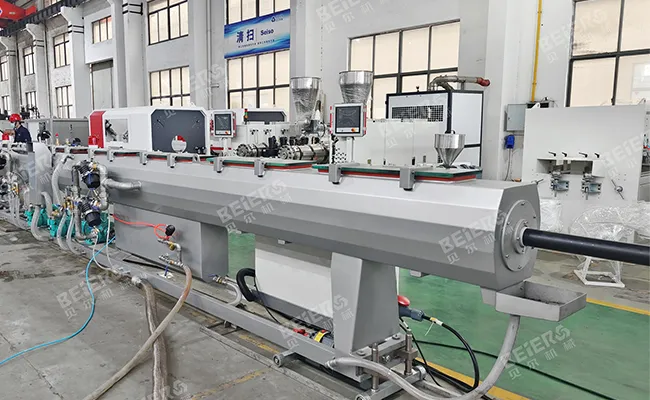

  • Vacuum Tank Part
    Double big volume filter. Thermo mechanical Expansion Valve. Water Regulator-Pressure Stable Water Supply.

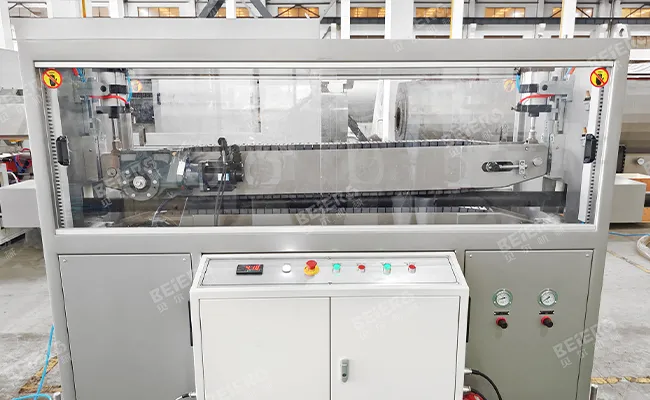

  • Hual-off Part
    Upon caterpillar with limit device in avoid of the deformation of pipes. V type high friction rubber pads.

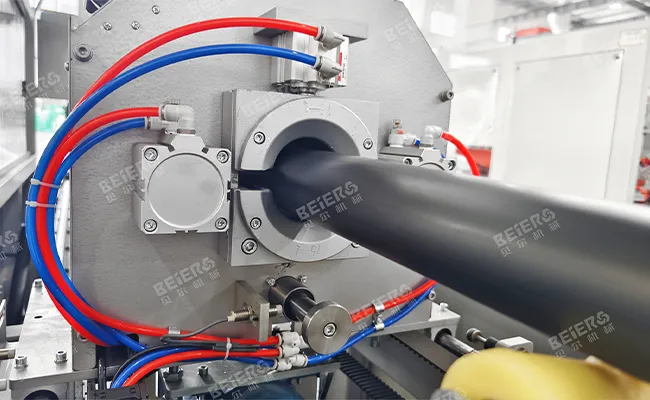

  • Cutter
    Universal clamping. Servo motor driving directly, cutting more precisely and stability. Imported blade material ensure HDPE pipe surface smooth cutting.
