HDPE Plastic Pipe Extrusion Machine 1200mm

HDPE Plastic Pipe Extrusion Machine Description:

According to many years of plastic machinery development and design experience, in the introduction of foreign advanced technology and digestion and absorption, on the basis of self-developed HDPE plastic pipe extrusion machine. Has the unique structure, the design is novel, the equipment entire line layout is reasonable, the control performance is strong and so on.

HDPE Plastic Pipe Extrusion Machine

Plastic pipe extrusion line using PLC control system, man-machine dialogue interface, simple operation, stand-alone adjustment, the full board linkage, automatic fault alarm, production and reliable.

HDPE Pipe Extrusion Machine Features:

1. The optimum spiral bush highly improves the output of pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and high quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

HDPE Pipe Extrusion Line Technical Parameter:

Model Pipe range(mm) Extruder model Extruder motor power(kw) Max. Output(kg/h)
BRD-63 Φ20-63 BRD60/38 90 450
BRD-110 Φ20-110 BRD60/38 110 500
BRD-160 Φ40-160 BRD60/38 110 500
BRD-250 Φ50-250 BRD75/38 160 680
BRD-450 Φ160-450 BRD90/38 250 1000
BRD-630 Φ280-630 BRD90/38 280 1100
BRD-800 Φ315-800 BRD120/38 315 1300
BRD-1200 Φ500-1200 BRD120/38 355 1400
BRD-1600 Φ1000-1600 BRD90/38&BRD90/38 250+250 2000
BRD-2000 Φ1000-2000 BRD90/38&BRD90/38 280+280 2200

Complete HDPE Pipe Production Line:

HDPE Plastic Pipe Extrusion Machine

HDPE Pipe Extrusion Line Video:

HDPE Pipe Extrusion Line Details:

Spread the love

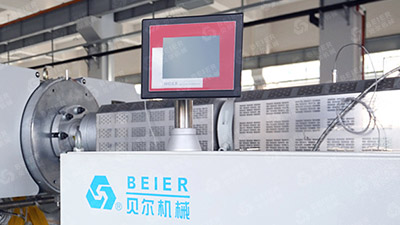

  • Precise Control
    All electrical components adopt internationally top brands, and the intelligent remote service module makes online-after-services achievable.

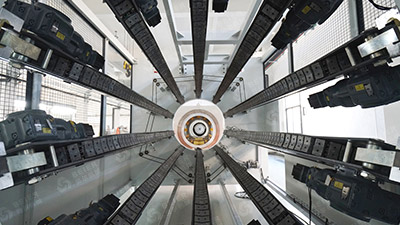

  • Haul-off
    Each caterpillar controlled by independent motor, optional servo motor guarantee uniform speed. Special design for well adapted to insulation pipe.

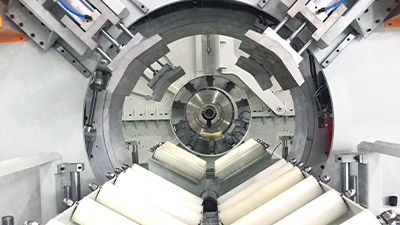

  • Cutter
    Precise non-chip and planetary cutting with servo motor, adapt to different cutting situation.

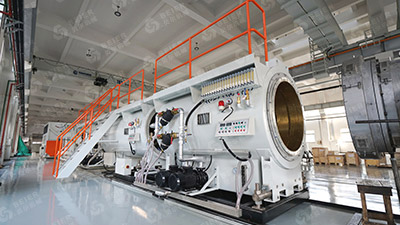

  • Vacuum Tank
    Advanced cyclone design and adjustable spray angle for better cooling effect. Driven by hydraulic system, move forward and backward rapidly and stably. 3+9m design for fast cooling calibration and segment control.
