PE Tube Extrusion Line

PE Tube Extrusion Line Description:

PE tube extrusion line has the high degree automation and long service life,controls the temperate auxiliary engine velocity modulation automatically. PE tube extrusion line produces product wall thickness adjustable; the inside and outside is bright and clean, the cold bending performance is fine.

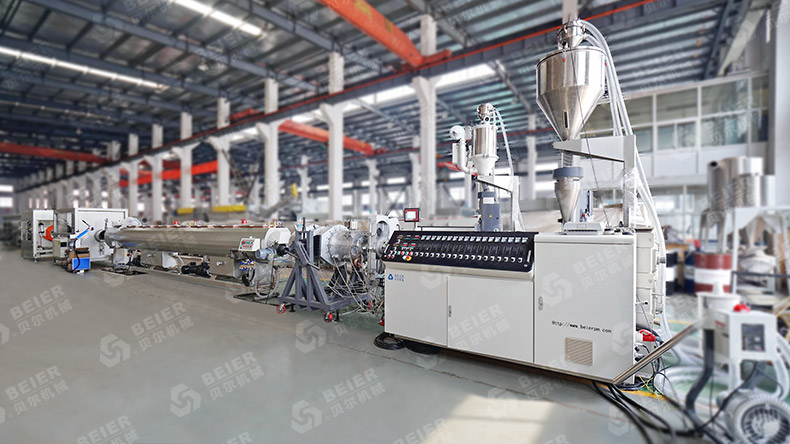

PE Tube Extrusion Line

PE tube extrusion machine using PLC control system, man-machine dialogue interface, simple operation, stand-alone adjustment; the full board linkage, automatic fault alarm, production and reliable.

PE tube extrusion machine is used in many industries particularly industrial piping systems, including underground gas and water pipelines, where it is the dominant material.

PE Tube Extrusion Machine Features:

1. The optimum spiral bush highly improves the output of pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and high quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw &chip free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

PE Tube Extrusion Line Technical Parameter:

Model Pipe range(mm) Extruder model Extruder motor power(kw) Max. Output(kg/h)
BRD-63 Φ20-63 BRD60/38 90 450
BRD-110 Φ20-110 BRD60/38 110 500
BRD-160 Φ40-160 BRD60/38 110 500
BRD-250 Φ50-250 BRD75/38 160 680
BRD-450 Φ160-450 BRD90/38 250 1000
BRD-630 Φ280-630 BRD90/38 280 1100
BRD-800 Φ315-800 BRD120/38 315 1300
BRD-1200 Φ500-1200 BRD120/38 355 1400
BRD-1600 Φ1000-1600 BRD90/38&BRD90/38 250+250 2000
BRD-2000 Φ1000-2000 BRD90/38&BRD90/38 280+280 2200

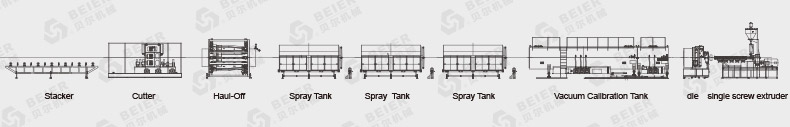

Complete PE Tube Production Line:

PE Tube Extrusion Line

PE Tube Extrusion Machine Video:

PE Tube Extrusion Machine Details:
