PET Sheet Extrusion Line

pet-sheet-extrusion-line

PET Sheet Extrusion Line Description:

Bringing in international advanced technology, combined with our practical experience and domestic requirement, PET Sheet Extrusion Line has been designed and developed by ourselves and is used to produce plastic sheet.  Acording to different customers’ requirement can produce PVC, PP, PE, PS, ABS,PET or some other extrusion sheet.

pet-sheet-extrusion-line-1 pet-sheet-extrusion-line-2

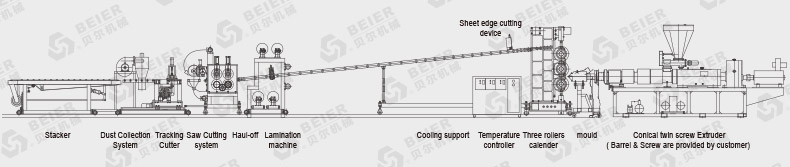

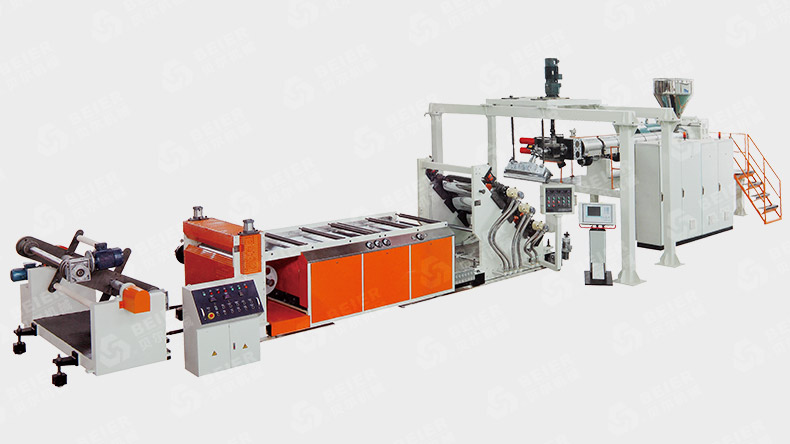

Beier Machinery is specialized in providing you with PET Sheet Extrusion Line in China. The quality of PET Sheet Extrusion Line is reliable and the performance is stable. This PET Sheet Extrusion Line is composed of special single screw or twin-screw extruder, die and downstream equipment. High output, stable extrusion, high foaming, smooth and wearable surface are the advantages of this PET Sheet Extrusion Line.

pet-sheet-extrusion-line-3

PET Sheet Extrusion Line Application:
1. PET sheet extrusion line can produce PET Single Layer, Multi-Layers Composite Sheet.
2. The screw was designed by special mixed material and high plastify,so that flux plastic,coloury,high output.
3. T-die was designed by special double throttle,it make sure sheet thickness more nicety.
4. PET sheet extrusion line can be produced with additives to different requirement such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting, etc.
5. Temperature control ± 1,it will exactly control plastify process,sheet thickness.
6. Forming roler platform adopts vertical or 45 degree,inclined collocation,which can lift up and down,it supplies more options in operation for producing thick board thin board,and enhance quailty of board.
7. Forming roller loop cooling system,matching with mould temperature controller to control temperature,whick ensures even thickness of board.
8. Shearer can precisely cut the board.
9. Winder device,whick adopts high grade torque motor,matching with four-axis automatic tension controlling,whick can adjust speed and winding tension to get even surface for thin board,also with slitting device can set width of product as you want,we fix automatic meter counter which can set the length of product.
