PP Pipe Extrusion Machine

PP Pipe Extrusion Machine Description:

This PP pipe extrusion machine adopts advanced design concept to ensure the efficient extrusion of PP material combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

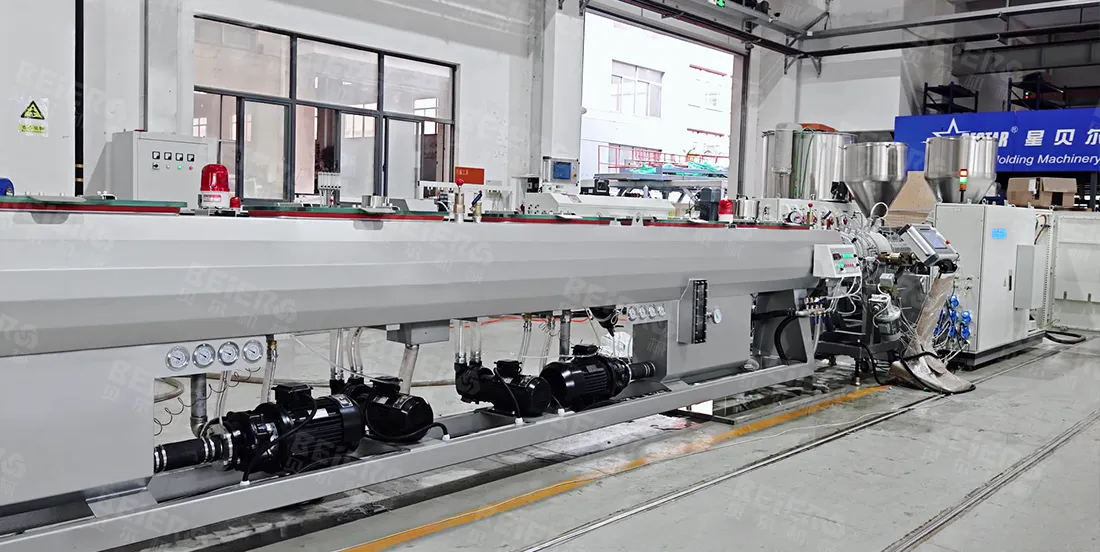

PP Pipe Extrusion Machine

PP Pipe Extruder Features:

1. This PP pipe extrusion line group consist of vacuum calibration tank, haul-off unit, cutting unit, stacker and so on.
2. Man-machine operation interface, high automation level .
3. The adoption of professional screw ensures good plastification.
4. Adopts compound screw type head to clear memory function effectively.
5. Vacuum forming, constant temperature control to remove stress of pipe material .
6. Adopts common extruding head and adds marking color line for pipe material.

PP Pipe Extrusion Line Applications:

The PP pipe extrusion line is used in underfloor heating, central heating installations in housesand industries, industrial transportations chemical fluids and gasses, conveyance of potable water, , hot and cold water transportation, special applications: undersea networks, networks with a high risk of electrochemical corrosion etc.

PP Pipe Extrusion Line Technical Parameter

Pipe range(mm) Extruder model Motor power Max. Output (kg/h)
20-63 BRD50/38 55 220-250
BRD50/38 55
20-160 BRD60/38 90 450-500
BRD50/38 55

PP Pipe Extrusion Line Video

PP Pipe Extrusion Line Details:

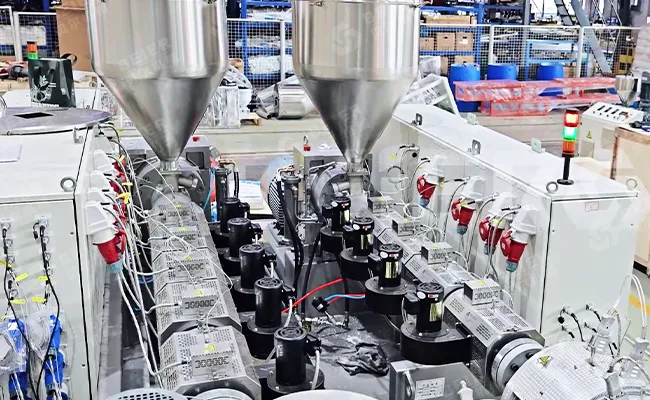

  • Extruder Part
    L/D=38, double mixer and barrier screw, which can ensure 100% plasticization before going into die, with spiral groove on feeding part, it increases 30% of productivity.

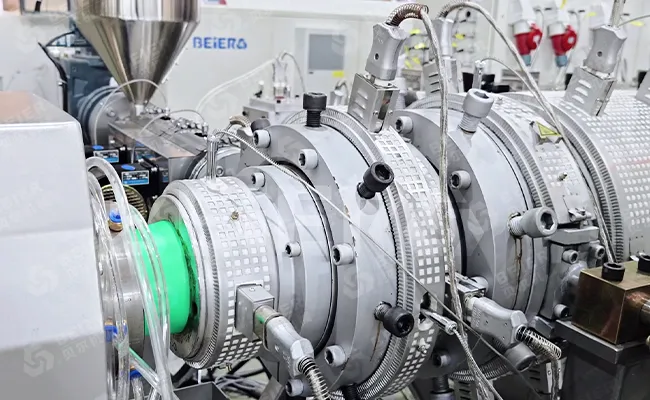

  • Mould Part
    Die with spiral mandrel, it ensures no delay in the flow channel which can improve pipe quality.Particular disc design on calibration sleeves which ensures high speed extrusion.

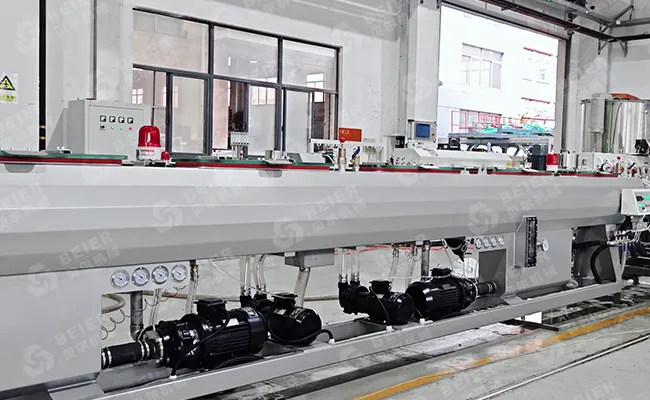

  • Vacuum Tank Part
    Double-strand vacuum tank is controlled individually, which makes convenient operation as single one.

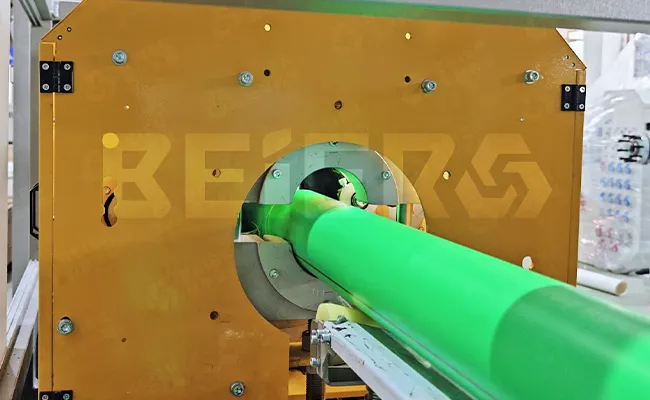

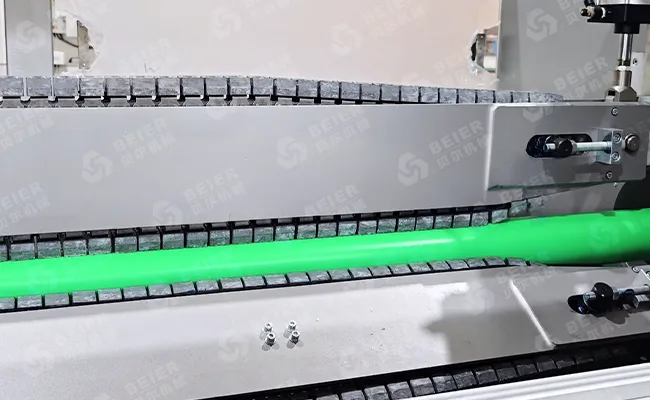

  • Haul-off
    With individual designed of chipless cutter. Driven by motor and synchronous belts which ensures normal cutting during high speed running.
  • Winder
