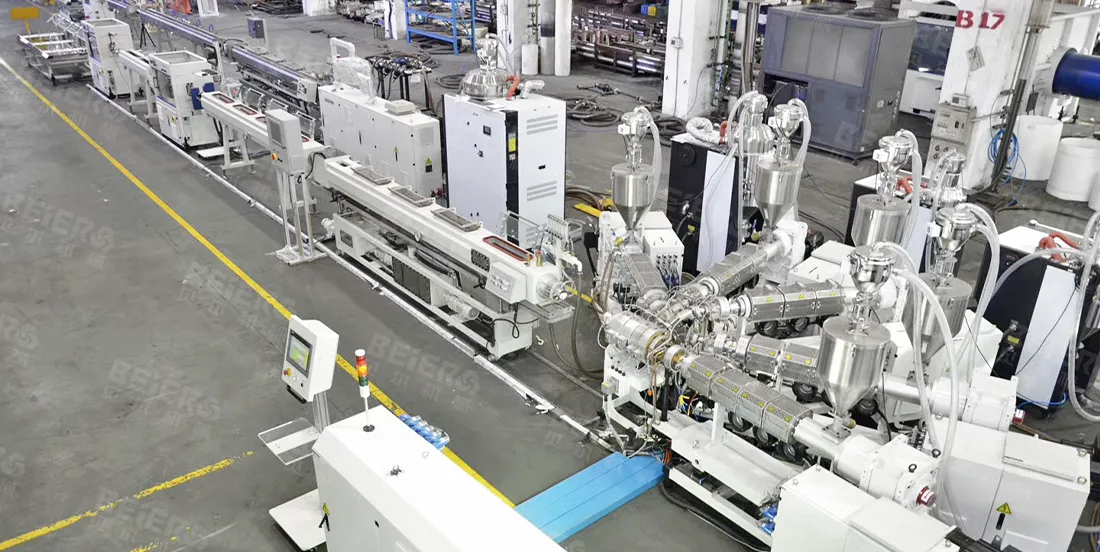

PPR Pipe Extrusion Line

PPR Pipe Extrusion Line Description:

1.Internal layer PP-R:30%
The internal layer made from high grade polyproylene granulate features the colour coding of the pipe and is used to guarantee the renowned sate processing as well as to protect the middle layers.

2.Second layer Glass fiber compounding:30%
The PPR glass fiber compound is the result of detailed research carried out at the Beier Polymer-Engineering division and is a new development in this field. the perfect interaction between the corresponding glass fibres and the PP-R provides outstanding properties in terms of linear expansion,deflection and low-temperature impaction strengh.

3.Intermediate layer PP-R.30%
Improved long-term stress behavior with longer periods of operation.especially at higher temperatures.

4.External layer PP-R CT:10%

PPR Pipe Extrusion Line

PPR Pipe Extrusion Machine Application:

The PPR pipe extrusion line is used in underfloor heating, central heating installations in housesand industries, industrial transportations chemical fluids and gasses, conveyance of potable water, hot and cold water transportation, special applications: undersea networks, networks with a high risk of electrochemical corrosion etc.

PPR Pipe Extrusion Line Advantage:

1.L/D=38, double mixer and barrier screw, which can ensure 100% plasticization before going into die, with spiral groove on feeding part, the PPR pipe extrusion machine increases 30% of productivity.
2.Die with spiral mandrel, it ensures no delay in the flow channel which can improve pipe quality.Particular disc design on calibration sleeves which ensures high speed extrusion.
3.Double-strand vacuum tank is controlled individually, which makes convenient operation as single one.
4.Double haul-off is also controlled individually which makes convenient operation as single strand,additionally, with the upper caterpillar belt stop device, to ensure roundness of pipe.
5.With individual designed of chipless cutter. Driven by motor and synchronous belts which ensures normal cutting during high speed running.

PPR Pipe Extrusion Machine Technical Parameter

Pipe range(mm) Extruder model Motor power Max. Output (kg/h)
20-63 BRD50/38 55 220-250
BRD50/38 55
20-160 BRD60/38 90 450-500
BRD50/38 55

PPR Pipe Production Line Video

PPR  Pipe Extrusion Machine Details:

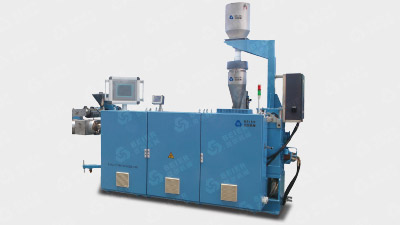

  • Extruder Part
    L/D=38, double mixer and barrier screw, which can ensure 100% plasticization before going into die, with spiral groove on feeding part, it increases 30% of productivity.

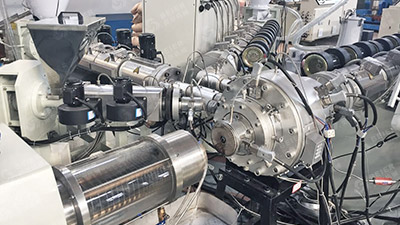

  • Mould Part
    Die with spiral mandrel, it ensures no delay in the flow channel which can improve pipe quality.Particular disc design on calibration sleeves which ensures high speed extrusion.

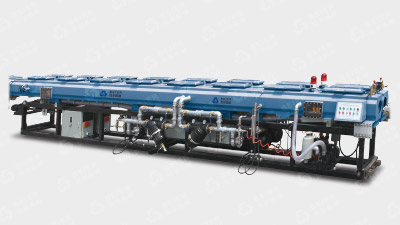

  • Vacuum Tank Part
    Double-strand vacuum tank is controlled individually, which makes convenient operation as single one.

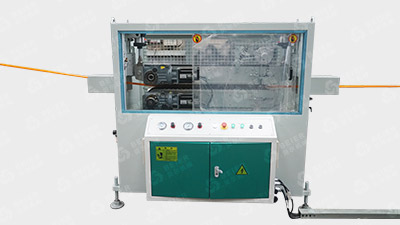

  • Cutter
    With individual designed of chipless cutter. Driven by motor and synchronous belts which ensures normal cutting during high speed running.

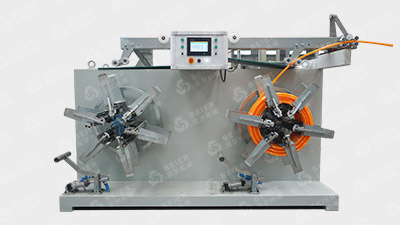

  • Winder
