PVC Ceiling Panel Extrusion Line

PVC Ceiling Panel Extrusion Line Description:

PVC ceiling panel extrusion line is a highly automated production system that integrates mechanical, electrical, hydraulic, and intelligent control systems. The PVC ceiling panel production line uses polyvinyl chloride (PVC) as the main raw material of the mixture. Through high-temperature melting, extrusion molding, cooling and shaping, printing and embossing, and fixed-length cutting, continuously produces high-quality PVC ceiling panels in various specifications, patterns and colors.

What is a PVC Ceiling Panel?

In modern architecture and interior decoration, PVC ceiling panels have become one of the preferred materials for home improvement and interior design due to their lightweight, waterproof, moisture-proof, fire-retardant, easy installation, and diverse decorative effects.

PVC Ceiling Panel Production Line Advantage:

1. The high stability and precision of the PVC ceiling panel extrusion machine ensures that each panel is of exceptional quality, boasting precise dimensions, precise tongue-and-groove fit, and uniform color and texture.

2. Continuous automated production, with high daily output, enables rapid response to large-scale orders and reduces unit production costs.

3. The efficient PVC ceiling panel extruder and automated system reduce energy consumption and labor costs, while the high yield reduces waste and loss, delivering substantial returns for investors.
4. By replacing molds and printing rollers, the PVC ceiling panel production line can flexibly produce a variety of panel specifications and surface patterns, easily responding to market changes and personalized needs.

PVC Ceiling Panel Making Machine Video:

Components of PVC Ceiling Panel Production Line:

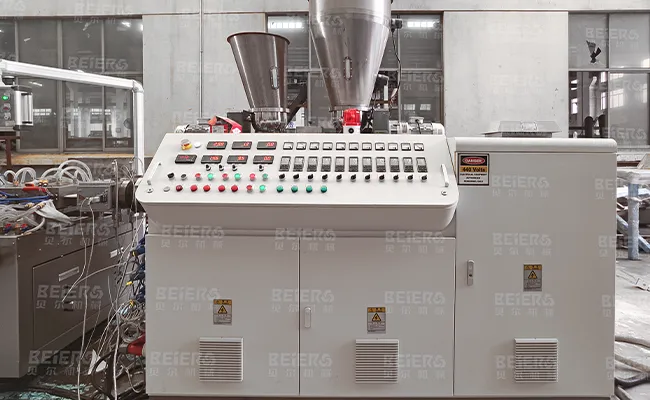

Extruder Part
PVC resin powder and various additives (like stabilizers and colorants) are fed into the extruder. The screws heat and mix the raw materials, melting them into a homogenous, plasticized liquid.

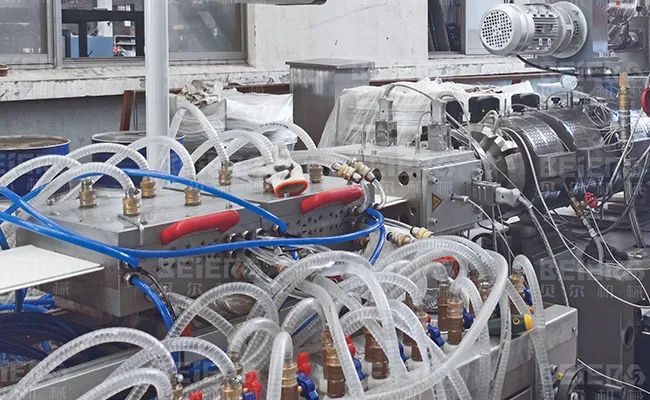

Extrusion Die Head
The molten PVC is forced through a custom-designed die head, which shapes the material into the desired cross-section of the trunking profile. The die determines the final dimensions and shape.

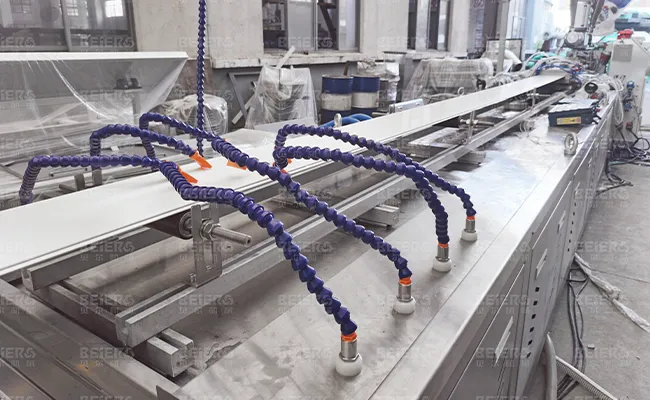

Vacuum Calibration Table
Immediately after leaving the die, the hot, soft profile enters the vacuum calibration table. Here, it is cooled with water and shaped by a vacuum to maintain its precise dimensions as it solidifies.

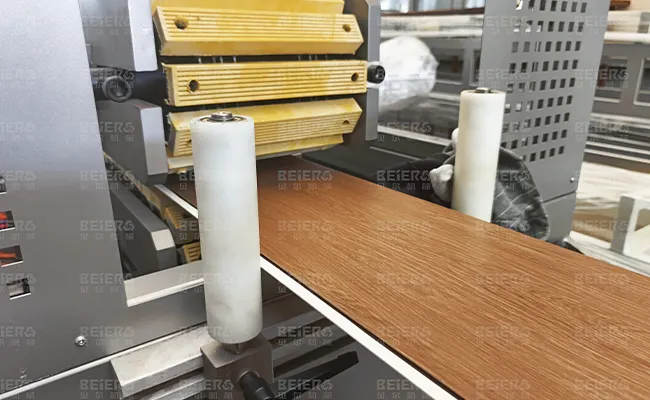

Haul-off Machine
This haul-off uses a series of belts or rollers to pull the profile out of the calibration table at a steady, consistent speed. The speed of the haul-off machine is critical for controlling the thickness and dimensions of the final product.

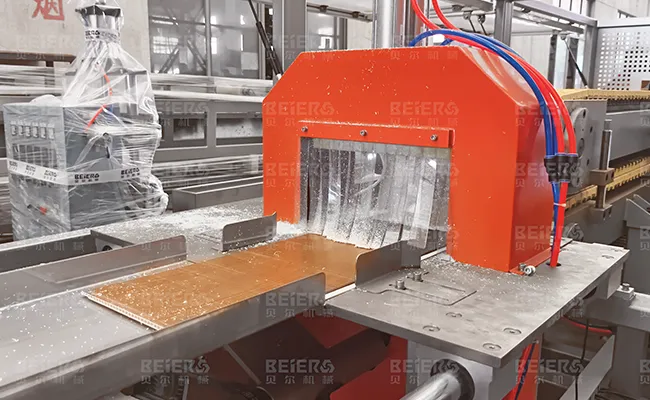

Cutter Machine
A cutter, typically a saw, cuts the continuous profile into the required lengths (e.g., 2, 3, or 4 meters).

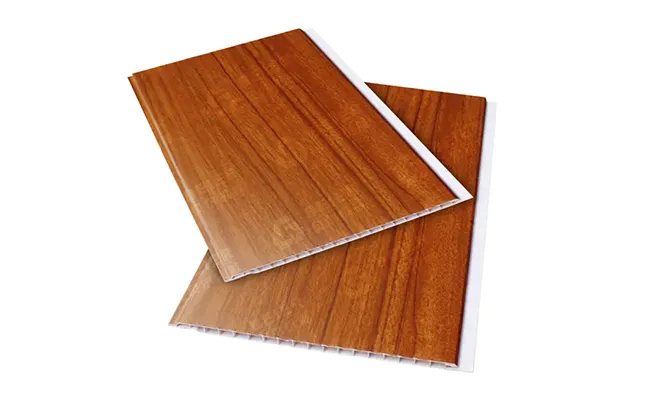

Final PVC Ceiling Panel
PVC ceiling panels are ideal for cladding ceilings in bathrooms, toilets, kitchens, basements, garages and all other indoor rooms.
