PVC Pipe Extrusion Machine 20-800mm

20-800mm PVC Pipe Extrusion Line Description:

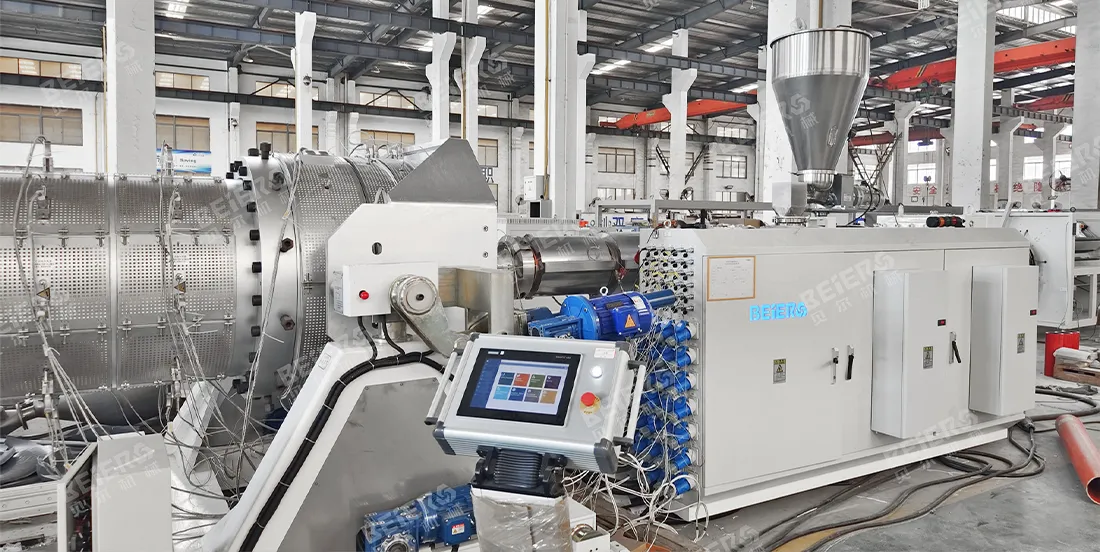

20-800mm PVC pipe extrusion machine is mainly used in manufacturing the pipe for agricultural and constructional plumbing,cable laying etc. This PVC pipe extrusion line is composed by conical twin-screw extruder,mould,vacuum calibration tank,haul-off ,cutter and staker etc. The extruder and haul-off adopt imported AC frequency control device,vacuum pump and haul-off motors adopt high-quailty brand.

PVC Pipe Extrusion Machine

The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc, you may choose saw cutting type or planetary cutting type, pipe extrusion machine is additionally attached with the length counter and intensifying device, PVC pipe extrusion machine is with the reliable performance and high production efficiency. Beier Machinery also manufacture special pipe production lines,eg.Spiral silencing pipe and core foaming pipe according to your requirements.

20-800mm PVC Pipe Extrusion Line Advantages:

1.Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
2.Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
3.Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
4.Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;
5.Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
6.U type, R type and Air blow type socket can be provided according to applications;
7.The PVC pipe extruder adopts intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.

20-800mm PVC Pipe Extrusion Machine Technical Parameter:

Pipe range(mm) Extruder model Extruder motor power(KW) Capacity(kg/h)
Φ16-63 Dual pipe SJZ65/132 37 280-350
Φ50-110 Dual pipe SJZ80/156 55 400-550
Φ50-160 SJZ65/132 37 280-350
Φ75-250 SJZ65/132 37 280-350
Φ110-315 SJZ80/156 55 400-550
Φ160-450 SJZ80/156 55 400-550
BRP93/28 67 550-600
Φ315-630 SJZ92/188 110 750-850
BRP107/26 90 750-850
Φ710-1000 BRP135/28 160 1100-1200

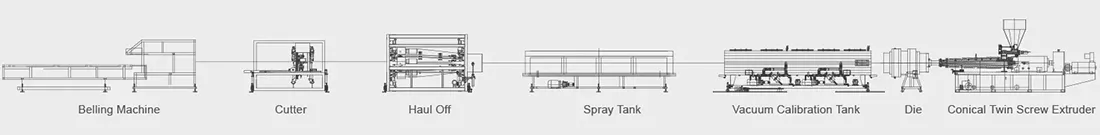

Complete PVC Pipe Production Line:

PVC Pipe Extrusion Machine

20-800mm PVC Pipe Extrusion Production Line Video:

20-800mm PVC Pipe Extrusion Machine Details:

  • Extruder Part

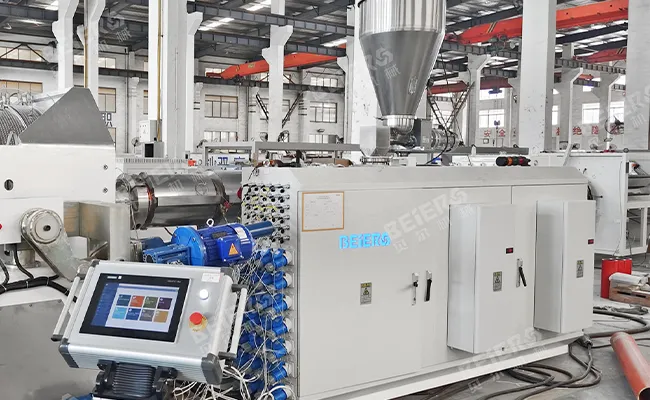

    Verticle High torque gearbox. Gearbox:Sunglung brand,Taiwan. Every 48hours clean and fast cooling system.
  • Mould Part

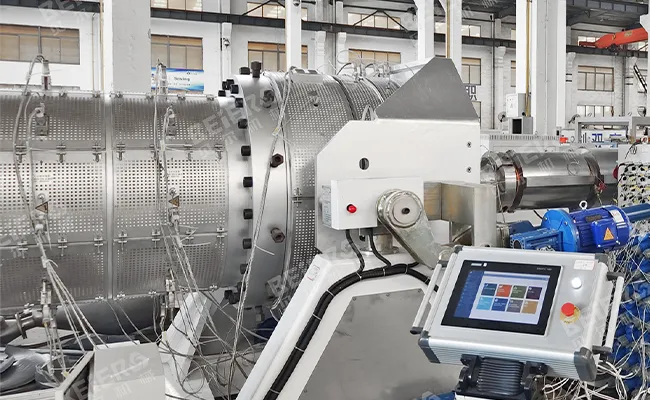

    Extrusion head inside spider structure, equal distribution & best plasticization. Copper Calibrator with double water ring,stable and fast running on line.
  • Vacuum Tank Part

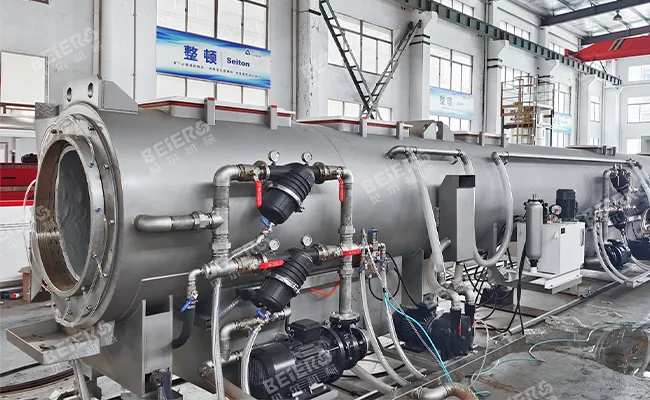

    1. Optimized design tank and water pipe system made from stainless steel. 2. Water pipe and vacuum system stability and adjustable. 3. Vacuum table adjustable in 3-D direction.
  • Hual-off Part

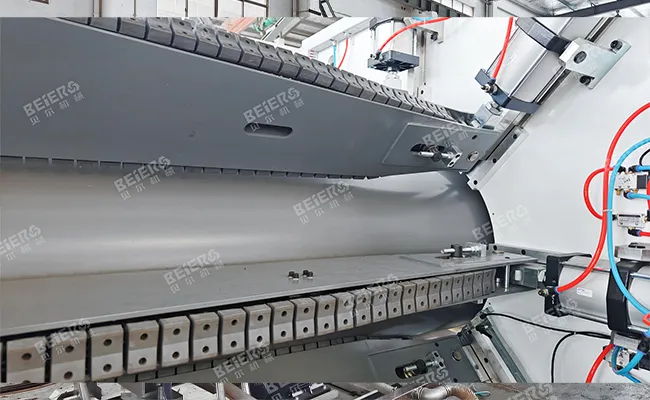

    Speed range: 0-20m/min. Sychronous of PLC, Vacuum tank and Haul off. ABB invertor controlled.
  • Cutter

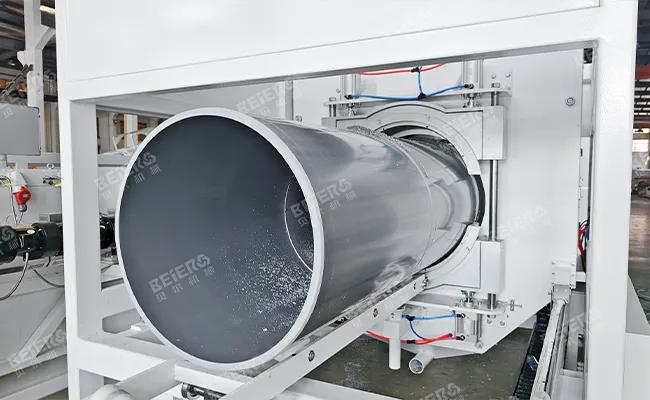

    Meter encoder with prescisely and stability. Ring knife design independently controlled. Chiless cutter without PVC dust... Each blade diameter easier changed to sharpner.
