Plastic Sheet Extrusion Machine
APET PETG CPET Sheet Extrusion Production Line

APET PETG CPET Sheet Extrusion Production Line Description:

APET PETG CPET single-layer or multi-layer sheet extrusion production line is one of the most advanced technology machinery in China with the matured technology and the stable production ability. Sheet extrusion machine is about 30% better when comparing with the same equipment made in the domestic market. And this sheet extrusion line can also be used in the PS, PP, ABS sheet production. Beier Machinery has developed the CEPT sheet production line, APET thick board production line. And the technology of the sheet extrusion machine is much better than the technology used in the domestic market.

Sheet Extrusion Production Line

Dryer-free PET double venting sheet line (free of crystallization drying system), it’s the high quality PET sheet production line, designed with the simple operation system, low power cost which greatly reduces the cost of production.

APET PETG CPET Sheet Extrusion Machine Application:

  • Products Application: the sheet extrusion line has the features of good processing capacity, transparency, innocuity, no smell and no pollution, easy in recycling.

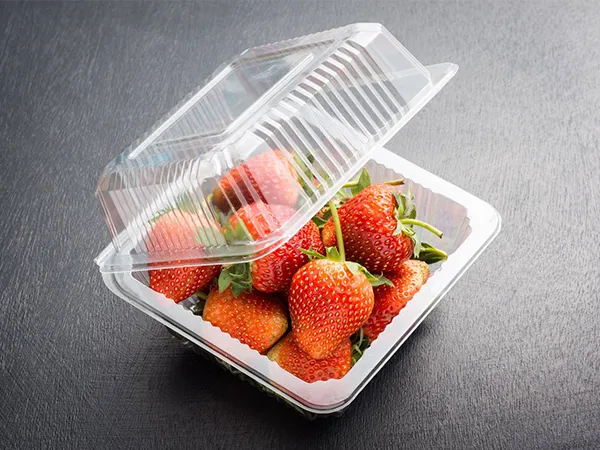

  • Vacuum Forming: Food packing, toy box, stationery cases, tools and hardware packing.
  • Obstruct Application: Electron components packing.
  • Normal Application: Fold forming, under collar, decorate material, file folder, paper file, documents cover, credit cards.

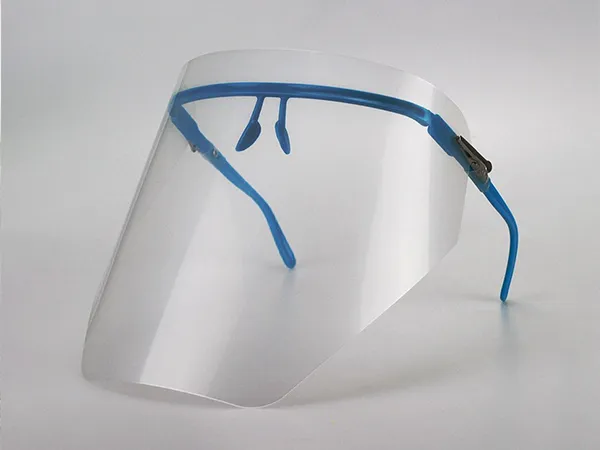

  • Special Application: Medical equipment, medicine packing, industrial antisepsis, plate for microwave oven(CPET).

Sheet Extrusion Production Line

APET PETG CPET Sheet Extrusion Line Technical Parameters

Model
APET Single Layer
APET/PETG Multi Layer
Extruder Specification
Φ120/33
Φ120/33, Φ65/33
Products Width
500-1500mm
500-1200mm
Products Thickness
0.20-1.5mm
0.20-1.5mm
Capacity(Max)
450kg/h
500kg/h
Main Motor Power
132kw
132kw/45kw
Design Production Speed
20m/min
25m/min

APET PETG CPET Sheet Extrusion Production Line Video
