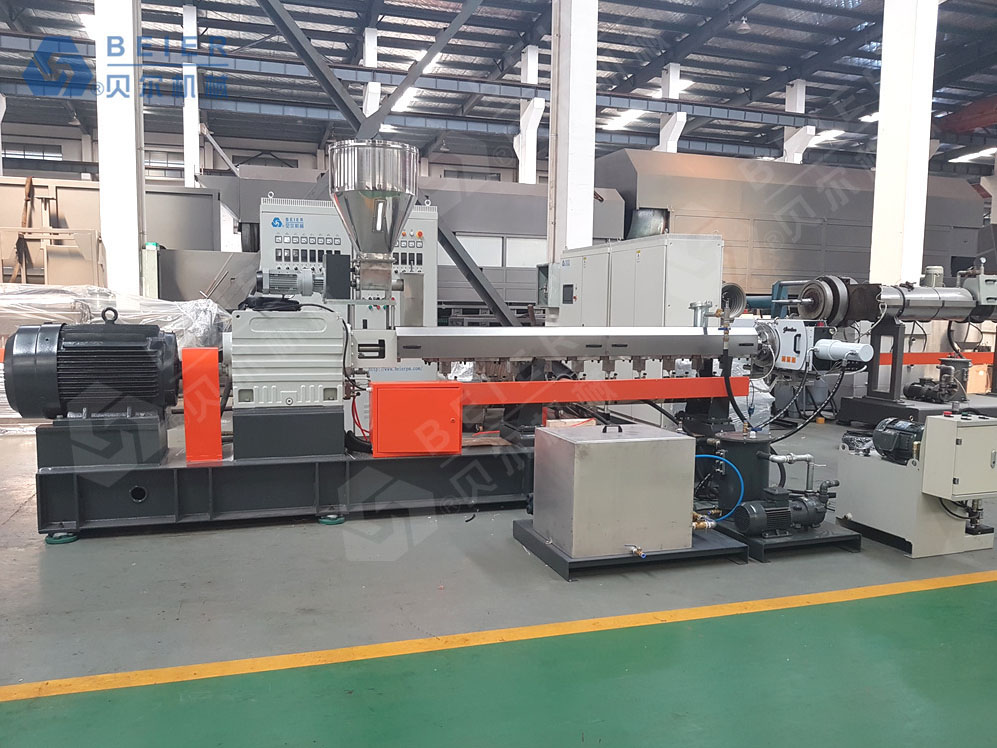

TSK Series Parallel Twin Screw Extruder

TSK Series Parallel Twin Screw Extruder Introduction:
Beier Machinery TSK Series Parallel Twin Screw Extruder is a kind of high-efficiency compounding and extruding equipment. Its core section is composed of “00”type barrel and two screws,which mesh with each other. TSK Series Parallel Twin Screw Extruder also has driving system and control system,feeding system to form a kind of special extruding, granulation and shaping processing equipment. The screw stem and barrel adopt building type design principle to change the length of the barrel, choose different screw stem parts to assemble the line according to material characteristics, so as to get the best work condition and max function. Because it has good mixing, separating, dewatering and self-cleaning functions to avoid the materials wrapping the axle, caking in the extruding process. With the rotation of the screw, the surface of the materials continuously change, helps the volatile matter dewater, treat, and etc.

Extruder

TSK Series Parallel Twin Screw Extruder can produce all sorts of PVC plastic pipe material,profiled material,plate material,sliced material,bar material and granulation.
TSK Series Parallel Twin Screw Extruder can also extrude PP,PE pipe at high speed by changing special barrel.
Computer control or conventional control is optional.
According to customer’s requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.
Parallel Twin Screw Extruders have firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.

Model TSK-30 TSK-35 TSK-50 TSK-60(58) TSK-65 TSK-75A TSK-75 TSK-95
Diameter (mm) 30 35.6 50.5 60 63 72 B75 95
Speed (r/min) 400 600 500/600 300/500 400/500 400/500 300/500 400
Main motor power (kw) 7.5/11 11/15 36/45 55/75 55/75 75/100 110/140 240
L/D 32-40 32-48 32-48 32-48 32-48 32-48 32-48 32-40
Output (kg/h) 10-40 40-100 50-200 80-300 150-375 200-500 200-600 800-1000
