Wood-Plastic Profile Extrusion Line

Wood-Plastic Profile Extrusion Line Introduction:
Fetching in Europe and America advanced technology and uniting with domestic condition, Beier Machinery develop this wood-plastic profile extrusion line. This wood-plastic profile extrusion line is mainly used to produce PVC profile, such as Ceiling, Deck, Floor, Cornice, Plank, Windows, Door frame and board and etc.

wood-plastic-profile-extrusion-line

Profile extrusion line possesses the features such as novel style, reasonable structure and friendly operation. The main extruder in this wood-plastic profile extrusion line, manufactured by Beier company, matches with auxiliary machines and die head. This profile extrusion line can realize full automatic control from feeding to staking. Meanwhile each machine can be regulated manually. Wood-plastic profile extrusion line possesses the advantages such as high elasticizing capacity, low energy consumption, high productivity performance cost value and long life. It’s the best selecting equipment to produce all kinds of plastic profile.

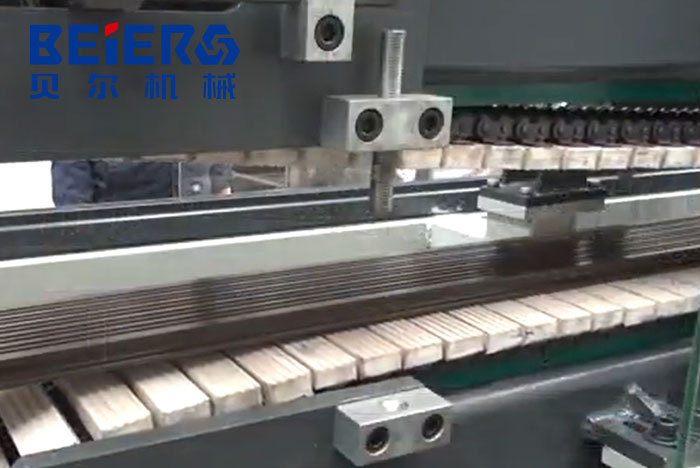

wood-plastic-profile-extrusion-line

The mold is divided and made in three parts: extrusion mold, lip mold and calibration mold.
The multi-stage designed guarantees the low friction for each part to ensure the surface more smoothly.
1.Independent and mobile control screen for more easy operation.
2.Strong water cooling for quick calibration.
3.Whole frame made by stainless steel.
4.Adjustable moving for accurate production.

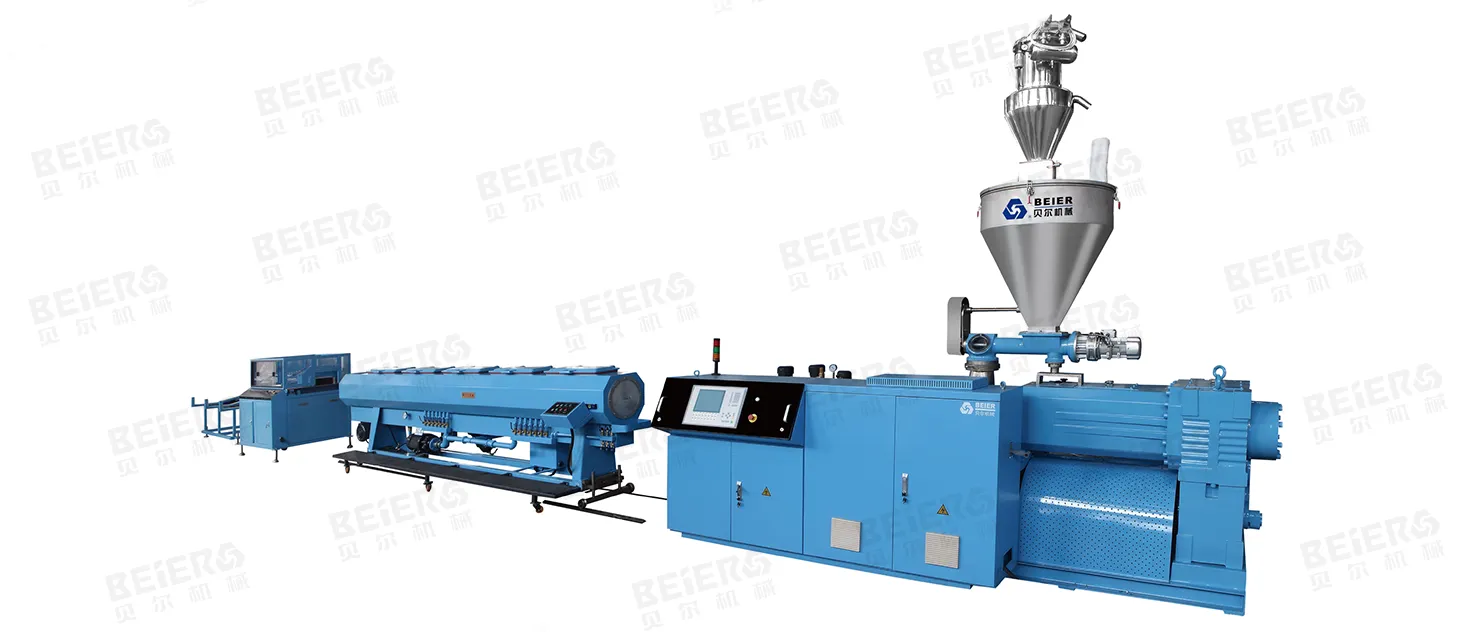

wood-plastic-profile-extrusion-line

Wood-Plastic Profile Extrusion Line Features:

1.Conical twin-screw extruder, suitable for processing PVC powder and WPC raw materials.
2.Changing the moulds to produce many kinds of different PVC profiles.
3.Auxiliary machine: Mixing unit, Mould, Vacuum calibration table, Haul-off machine, Cutter and Stacker.

Wood-Plastic Profile Extrusion Line Technical Parameter:

Model YF108 YF180 YF240 YF300 YF400 YF500 YF600
Max.Width(mm) 108 180 240 300 400 500 600
Extruder model SJZ51/105 SJZ51/105 or SJZ50/110 SJZ65/132 SJZ65/132 SJZ80/156 SJZ80/156 SJZ80/156
Main Motor Power (kw) 18.5 22 37 37 55 55 75
Production capacity (kg/h) 150 150/190 250 250 350 350 400
