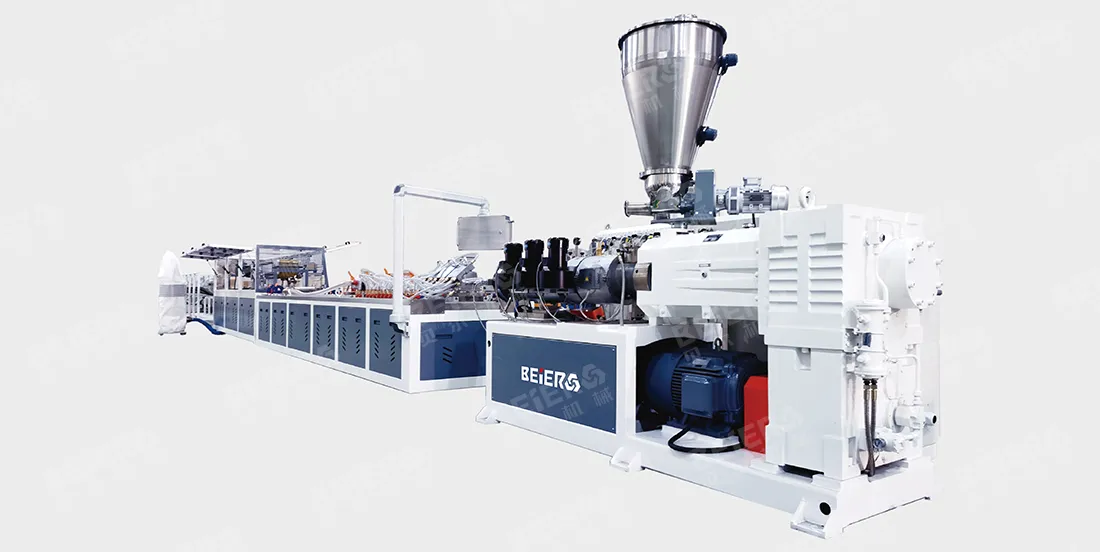

PVC Trunking Profile Production Line

PVC Trunking Profile Production Line Description:

PVC trunking profile production line is a complete set of industrial machinery used to manufacture PVC (Polyvinyl Chloride) cable trunking profile, also known as wire ducts or wiring channels. This PVC trunking profile extrusion line can production hollow profiles with a specific cross-sectional shape for managing and protecting electrical wires and cables.

PVC profile production line allows for the efficient, high-volume manufacturing of PVC trunking profiles with precise dimensions and a consistent finish.

PVC Trunking Profile Extrusion Line Features:

1. Energy Efficiency: PVC trunking profile extruder is designed with advanced heating and cooling systems to optimize energy consumption. They often feature brand-name motors and inverters (such as those from Siemens or ABB) to ensure stable operation and lower power usage.

2. PLC Control System: The PVC trunking profile extrusion line is managed by a Programmable Logic Controller (PLC) with a user-friendly Human-Machine Interface (HMI). This allows operators to easily monitor and adjust parameters such as temperature, screw speed, and line speed.

3. Multi-Purpose Design: The line is often designed to produce not only PVC trunking but also other PVC profiles like window frames, door frames, or wall panels by simply changing the extrusion die.

4. Material Flexibility: The PVC trunking profile extrusion machie can be configured to process a range of PVC formulations, including those with different filler content, to meet specific requirements for rigidity, fire resistance, or color.

PVC Trunking Profile Extrusion Line Video:

Components of PVC Profile Production Line:

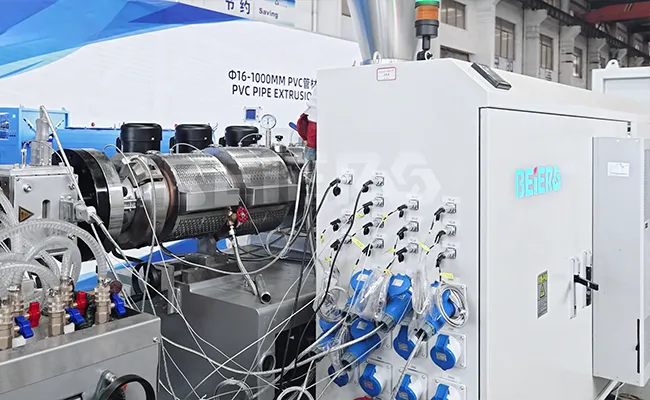

Extruder Part
PVC resin powder and various additives (like stabilizers and colorants) are fed into the extruder. The screws heat and mix the raw materials, melting them into a homogenous, plasticized liquid.
Extrusion Die Head
The molten PVC is forced through a custom-designed die head, which shapes the material into the desired cross-section of the trunking profile. The die determines the final dimensions and shape.

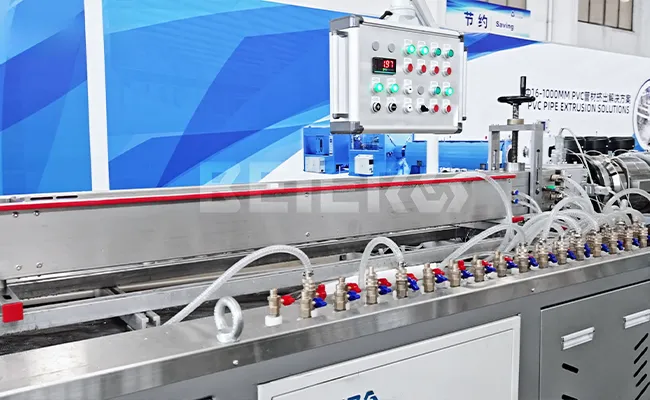

Vacuum Calibration Table
Immediately after leaving the die, the hot, soft profile enters the vacuum calibration table. Here, it is cooled with water and shaped by a vacuum to maintain its precise dimensions as it solidifies.

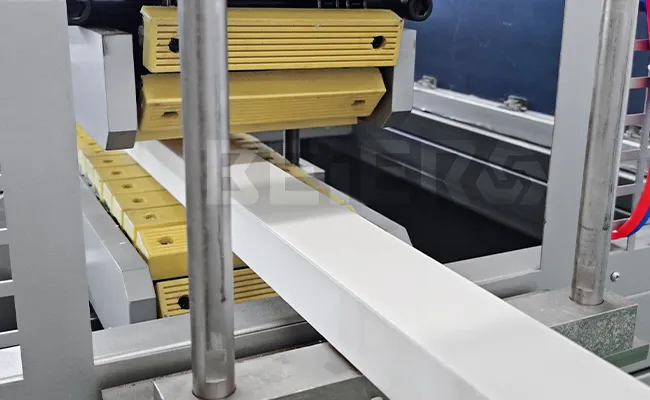

Haul-off Machine
This haul-off uses a series of belts or rollers to pull the profile out of the calibration table at a steady, consistent speed. The speed of the haul-off machine is critical for controlling the thickness and dimensions of the final product.

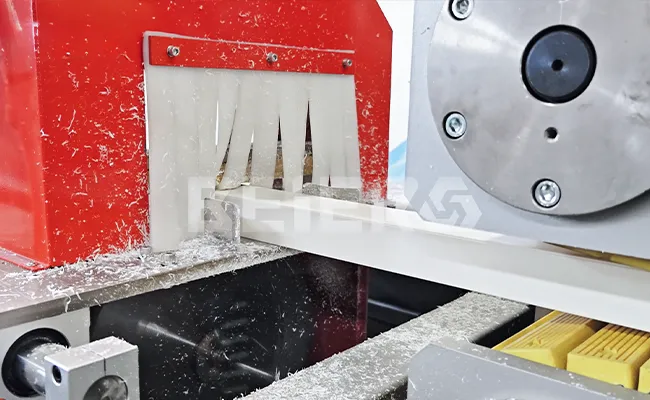

Cutter Machine
A cutter, typically a saw, cuts the continuous profile into the required lengths (e.g., 2, 3, or 4 meters).
Final PVC Trunking Profile
PVC window door profile, PVC door panel, PVC window sill board, cabinet door board, curtain box and different decorative PVC profiles.
